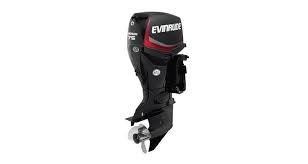

2019 EVINRUDE 75 HP E75DPGL OUTBOARD MOTOR

Description

2019 EVINRUDE 75 HP E75DPGL OUTBOARD MOTOR

Engine

Engine Type: Inline 3-Cylinder E-TEC D.I.

Bore x Stroke: 3.62 x 2.60 in. (92 x 66 mm)

Displacement: 79 cu.in. (1295cc) 1.3L

Starting: Electric

Dimensions

Shaft Length: 20 in. (508 mm)

Weight: 320 lb. (145 kg)

General

Trim Method: Trac-1 Power Trim and Tilt

Propshaft Horsepower: 75 hp

Full Throttle Operating Range: 5000-5500 rpm

Gear Ratio / Shift: 2.00:1

Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode

Alternator: 81 Amps Total / 25 Net Dedicated

Steering: Remote (Tiller accessory)

Warranty: 3-Year, Non-Declining

• Engine Model: E75DPGL Graphite
• Engine Type: Inline 3-Cylinder E-TEC D.I.
• Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
• Displacement – cu in (cc) L: 79 (1295) 1.3L
• Gear Ratio: 2.00:1
• Full Throttle RPM Range: 5000-5500 RPM
• Weight – lbs (kg): 320 (145)
• Starting: Electric
• Controls: Mechanical
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: 81 Amps Total / 25 Net Dedicated
• Steering: Remote (Tiller accessory)
• Trim Method: Trac-1 Power Trim and Tilt
• Trim Range: -4° to 17°
• Tilt Range: 75°
• Shaft Length – in (mm): 20 (508)
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity – gal (L): 2.4 (2.3)
• Recommended Oil: Evinrude / Johnson XD-100 Oil
• Recommended Fuel: 87 Octane
• Warranty: 3-Year, Non-Declining
• Emissions Compliance: EPA 2013 / CARB 3 STAR / European Union
