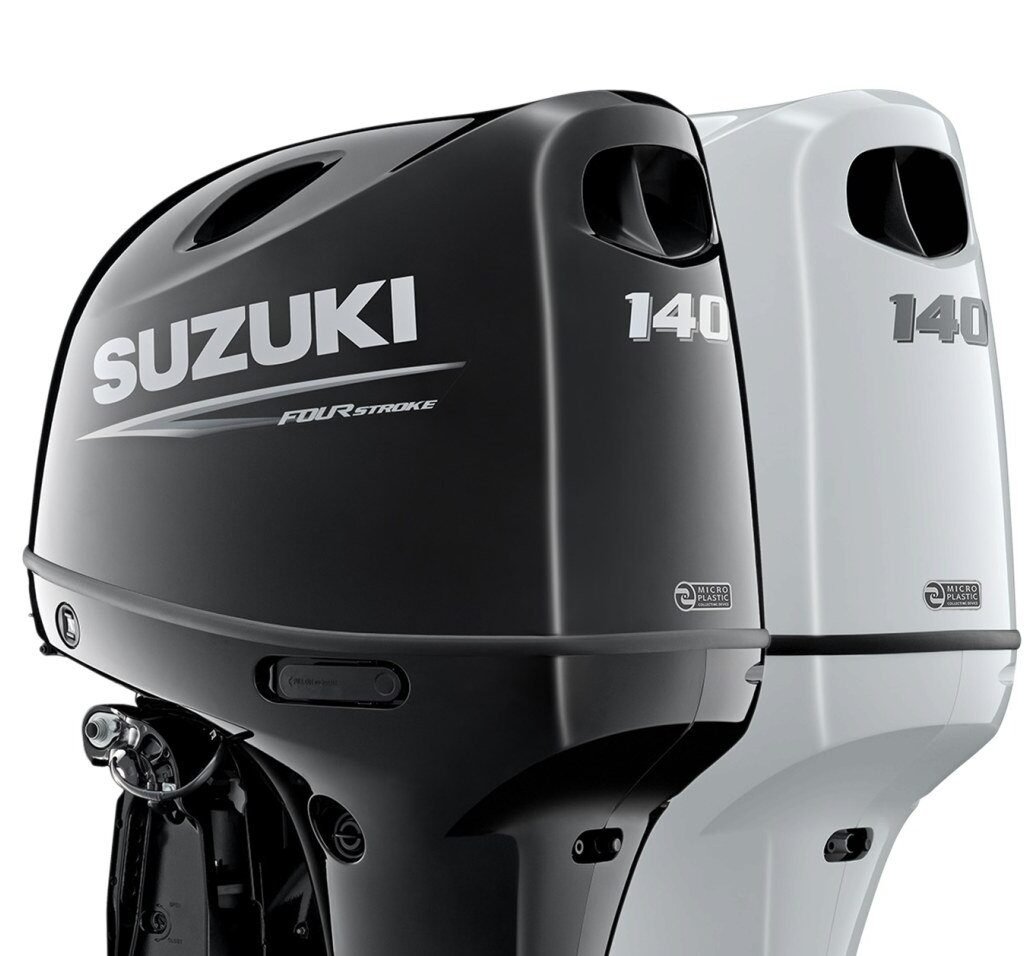

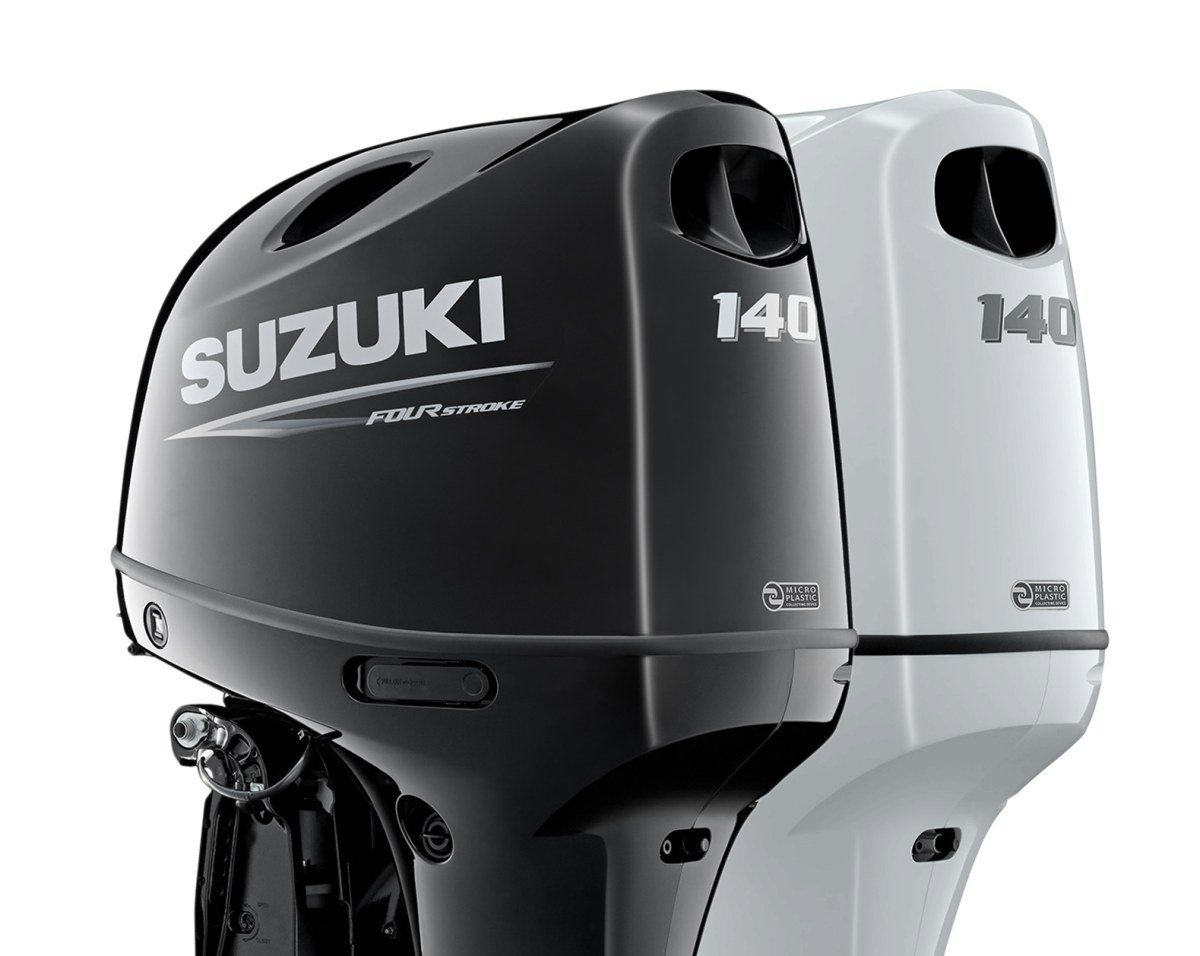

SUZUKI 140 HP DF140ATXZW2 OUTBOARD MOTOR

Description

We have the Suzuki DF140ATXZW2 for sale new in the factory crate. It is Suzuki’s 140 horsepower inline 4 four stroke with a 25 inch shaft, power trim and tilt, electric start and remote steering, finished in Cool White. It suits bay boats, aluminium fishing boats, pontoons and small centre consoles that want good power for the weight.

We sell new outboards to private owners, fishing operators, boat builders and dealers, and we ship worldwide. Tell us where your boat is and we send you a delivery quote before you commit to anything. We are happy to answer questions about the Suzuki DF140ATXZW2 for sale by email or chat.

Below you will find the full specs, what the model code means, the boats it suits, rigging, maintenance and the questions buyers ask us most. It is a long page on purpose. A motor like this is a serious purchase and most people want the details first.

Suzuki DF140ATXZW2 for sale: Specifications

Numbers can move a little between production runs, so the paperwork in the crate is the final word. Suzuki keeps the current figures on its Suzuki 140 HP page on Suzuki Marine if you want to compare models side by side.

What the Model Code on the Suzuki DF140ATXZW2 for sale Means

Suzuki model codes look confusing until someone explains them once. DF is Suzuki’s four stroke prefix and 140 is the horsepower. The A marks the A generation of this engine. T means power trim and tilt. X is an extra long shaft, for a 25 inch transom. Z means counter rotation, so the prop turns the opposite way to a standard motor. W means the cowl is Cool White instead of black. The 2 at the end is the series number in Suzuki’s order code.

Why People Like the Suzuki DF140ATXZW2 for sale

Suzuki’s 140 sits in a sweet spot. It uses the 2.0 litre inline four from the 115, revs a little higher and makes 140 horsepower while weighing around 410 pounds on the L shaft. That is light for the power.

Lean Burn control trims fuel at cruise. The offset driveshaft moves the weight forward, and the two stage gear reduction gives a 2.59:1 ratio so the motor can swing a decent sized prop. The Suzuki DF140ATXZW2 for sale handles this well.

There is a self-adjusting timing chain running in oil, so no belts to replace. Mechanical controls keep rigging simple.

Boats That Suit the Suzuki DF140ATXZW2 for sale

Bay boats and flats boats

Light hulls in the 17 to 20 foot range fly with a 140.

Bass and multi species boats

A popular choice for boats rated around 140 to 150.

Pontoons

Mid size pontoons get good performance with less weight on the stern.

Aluminium boats

Deep V aluminium boats rated for 140 are a classic fit.

How the Suzuki DF140ATXZW2 for sale Feels on the Water

The Suzuki DF140ATXZW2 for sale feels lively. It revs freely and pushes light and mid weight boats hard.

It is also smooth and quiet at low speed, which matters on long idles out of the harbour. This is where the Suzuki DF140ATXZW2 for sale earns its keep.

Single or Twin Installs

This is the counter rotating version. It is meant to go on the port side of a twin rig, paired with the Suzuki DF140ATXW2 on the starboard side. With the props turning in opposite directions the boat tracks straight and steering stays light.

If you are building a twin rig, order both motors together and we will match the shaft lengths, colours and paperwork. Plenty of buyers send us their boat details before ordering the Suzuki DF140ATXZW2 for sale, and we like that.

Colour and Finish

This is the white version. Cool White looks clean on white hulls and stays cooler in the sun. Owners with white boats often say the motor just looks like it belongs. Under the paint it is identical to the black model.

Rigging the Suzuki DF140ATXZW2 for sale

This is a remote model. You will need a control box with throttle and shift cables, a steering system rated for 140 HP (hydraulic is normal at this size), a key switch and harness, gauges, a good marine battery and a fuel system with a water separating filter.

Mount the motor so the anti-ventilation plate sits roughly level with the bottom of the hull, then fine tune after a test run. If the prop blows out in turns, drop it a hole. If there is a lot of spray and drag, raise it. The 12 V, 40 amp alternator keeps electronics charged on a normal day. Keep that in mind when you set up the Suzuki DF140ATXZW2 for sale.

Transom Height and Shaft Length

The 25 inch shaft suits most offshore boats and centre consoles. Measure from the top of the transom to the bottom of the hull at the centreline before you order. Around 25 inches means the X shaft is right. Boats on an outboard bracket or with a deep notch may need a different length, so measure carefully.

Suzuki DF140ATXZW2 for sale or a 150?

Suzuki’s 150 is a much bigger engine at around 510 pounds. It has more torque for heavy boats.

The Suzuki DF140ATXZW2 for sale is about 100 pounds lighter and revs higher. On light and mid weight boats it is often the smarter choice.

Who Buys the Suzuki DF140ATXZW2 for sale From Us

Most of our buyers are owners who want a reliable motor and a fair price without dealer games. Next come fishing and charter operators repowering a working boat, and then boat builders and dealers who need stock to rig new hulls. The feedback after a season is nearly always the same: it starts every time, it is easy on fuel compared with what they had, and it has needed nothing beyond normal servicing.

Living With the Suzuki DF140ATXZW2 for sale

Owning this motor is mostly uneventful, and that is the point. Turn the key and it starts. Run your day, flush it, tilt it up and go home. With fuel injection there is no carburettor to gum up if the boat sits for a few weeks, and it behaves the same on a cold morning as on a hot afternoon.

Breaking In the Suzuki DF140ATXZW2 for sale

Follow the break-in in the owner’s manual. In short: vary the revs during the first hours, do not hold it at full throttle for long, and change the engine oil and filter at the first service. A motor broken in gently uses less oil and runs smoother for the rest of its life.

Give the gearcase its first oil change at that service too. It flushes out the fine metal from new gears bedding in. That applies to the Suzuki DF140ATXZW2 for sale as much as any motor.

Maintenance on the Suzuki DF140ATXZW2 for sale

Servicing a Suzuki inline four is straightforward. Most owners handle the basics and let a mechanic do the bigger jobs.

• Flush with fresh water after every trip in salt or muddy water.
• Change engine oil and filter at the hours in the manual, or once a year.
• Change the gear oil every season. Milky oil means water is getting in.
• Replace anodes when they are about half gone.
• Replace the water pump impeller every couple of seasons, sooner in sandy water.
• Change the fuel filters and keep fuel fresh if the boat sits.
• Check plugs and grease the tilt and steering points at the service intervals.

The motor warns you about overheating and low oil pressure, and Suzuki fits an over-rev limiter. Treat it well and it will put in many thousands of hours.

Matching the Motor to the Boat

The right motor is the one your boat is rated for, carrying the load you normally carry. Check the capacity plate for maximum horsepower and engine weight, then think about how you use the boat. Heavy loads, rough water and long runs all favour running close to the maximum rating. Light boats and calm water give you more freedom. If the numbers do not line up with 140 HP, ask us and we will point you to a better match. If you are unsure, send us a photo of the transom and we will check the Suzuki DF140ATXZW2 for sale is the right fit.

Fuel Use and Running Costs

The light weight and Lean Burn control make the Suzuki DF140ATXZW2 for sale economical at cruise. Your boat decides the real numbers.

Parts are easy to find in most countries because Suzuki sells a lot of outboards. Filters, impellers, anodes and plugs are normal stock items. That keeps the long term cost of owning the Suzuki DF140ATXZW2 for sale sensible.

Fuel Quality Matters

Modern fuel injected motors are very reliable, but they do not like bad fuel. Buy from busy fuel stations, keep the tank vent clean and fit a good water separating filter between the tank and the motor. If your fuel contains ethanol, do not let it sit for months. Ethanol pulls in water, and water in fuel is the most common cause of rough running we hear about.

A fuel stabiliser in the tank before a lay up is cheap insurance. Many repeat customers come back for a second Suzuki DF140ATXZW2 for sale on another boat.

Getting the Prop Right

A motor is only as good as its prop. With the Suzuki DF140ATXZW2 for sale you want to land in the 5,600 to 6,200 rpm band at wide open throttle with a normal load. Too many revs means the pitch is too low. Too few means it is too high. The usual pitch choice for this motor is a 15 to 26 inch pitch range.

Look at Suzuki genuine parts and accessories for propellers and service parts, or ask us. We are happy to suggest a pitch if you send the boat make, length and typical load.

Low Speed and Trolling

Four strokes are much better at low speed than old two strokes. They idle cleanly, do not load up with oil and do not foul plugs after an hour of trolling. If you troll a lot, ask about Suzuki Troll Mode, which lets you set trolling speed in small steps with a switch. Drift socks and a trolling plate are also cheap ways to slow a boat down further. The Suzuki DF140ATXZW2 for sale is covered here too.

Instruments for the Suzuki DF140ATXZW2 for sale

Suzuki’s digital gauges read engine data straight from the motor, including fuel flow and service reminders. If you prefer, plain analogue tach and trim gauges work too. Whatever you fit, run tidy wiring with proper fuses. Good wiring now saves a lot of headaches later.

Batteries and Wiring

Use a marine starting battery with good cranking amps, keep the terminals clean and tight and fit a battery switch. If you run lots of electronics, a second house battery with a charging relay keeps the starting battery fresh. Corrosion on terminals and loose earth wires cause more no-start calls than anything inside the engine.

Salt Water Care

Flush after every salt trip. Rinse the outside, wipe salt off the cowl and spray a corrosion inhibitor under the cowl now and then. Suzuki’s anti-corrosion finish is tough, but salt finds any gap if you ignore it. If the boat lives in the water, tilt the motor up when you leave it. That is a big part of why people choose the Suzuki DF140ATXZW2 for sale.

Hot and Cold Climates

In hot climates, check the tell-tale stream often and keep the cooling passages clean. Warm, silty water is hard on impellers. In cold climates, fuel injection makes starting easy, but drain the motor and winterise it properly before a freeze.

Towing and Ramp Habits

Long road trips are harder on an outboard than most people think. Use a motor support bracket rather than resting the motor on the tilt ram, and check the bolts on the transom clamp or mounting after the first few trips. At the ramp, back in, lower the motor, start it in the water and watch for the tell-tale before you drive off the trailer. Owners of the Suzuki DF140ATXZW2 for sale tell us the same thing again and again.

Back home, flush it while you wash the boat. Same routine every time and it becomes second nature.

Laying It Up

For short breaks, flush, drain and tilt up. For a long lay up, run stabilised fuel through the system, change the engine and gear oil, fog the engine if the manual calls for it, grease every fitting and keep the battery charged. A cover keeps sun and bird mess off the cowl. It is one of the reasons we keep the Suzuki DF140ATXZW2 for sale in stock.

Simple Fixes Before You Call a Mechanic

No crank: lanyard clipped on, lever in neutral, battery charged, terminals tight.

Hard starting: firm primer bulb, tank vent open, no water in the separator, fresh fuel. You get all of that with the Suzuki DF140ATXZW2 for sale.

Overheat alarm: stop, tilt up and look for a plastic bag or weed over the intake. Check the tell-tale stream when you restart.

Low top speed: check the prop for damage, check the mounting height and make sure the boat bottom is clean. Ask us if you want photos of the Suzuki DF140ATXZW2 for sale before it ships.

Rough running: old fuel and dirty filters cause most of it. Start there.

Carry These on Board

A spare kill cord, a spare prop with nut and washer, a fuel filter, a couple of spanners, a radio and a torch. Add a tow line and an anchor that holds. It sounds basic, but most bad days on the water start with something small. We are happy to answer questions about the Suzuki DF140ATXZW2 for sale by email or chat.

Tips for a Repower

A repower is the best chance you will get to fix the things you cannot reach with a motor on the back. Check the transom, replace old fuel hoses and the primer bulb, clean or replace the tank pickup and fit a new water separating filter. Fresh fuel lines and clean fuel make a new motor happy from the first day.

Measure the transom height before ordering so the shaft length is right. It is the one mistake that is hard to fix later. The Suzuki DF140ATXZW2 for sale handles this well.

Two Stroke to Four Stroke: What Changes

If your old motor was a two stroke, a few things will feel new. You will stop buying two stroke oil. The motor will idle cleanly without smoke. Fuel bills drop, often a lot, especially at cruise. You will also notice the extra weight on the transom, so set the trim and mounting height carefully on the first runs.

Service changes too. Instead of plugs and oil injection checks, you will be changing engine oil and filters like a car. It is simple, and most owners prefer it.

Avoid These Common Errors

Ordering the wrong shaft length, guessing the prop, reusing worn out controls and going over the boat’s power or weight rating. Those four mistakes cause most of the post purchase headaches we hear about. All of them are avoided with a tape measure, a look at the capacity plate and a short chat with us before you pay.

The First Year of Ownership

Year one is easy. Follow the break-in, get the first service done on time and keep a log of hours. Look at the prop and anodes now and then, and flush after every salt trip. Before winter or a long break, do a proper lay up. If you do those simple things, the motor will reward you with years of trouble free running.

How Delivery Works

We ship worldwide. Once you confirm the order, the Suzuki DF140ATXZW2 for sale is strapped to a pallet in its original crate and booked with a freight company we trust, or with your own forwarder. You get the paperwork your customs office asks for and a tracking number so you can follow it.

About the Warranty

Suzuki warranty terms vary by country and by recreational or commercial use. We will tell you what applies where you are. Whatever the terms, keep the paperwork and a simple service log. It makes any claim much easier.

In the Box

You get the complete DF140ATXZW2 motor, the owner’s manual, warranty papers and the standard factory fittings. Rigging parts such as controls, harnesses, gauges, steering and the prop are quoted separately unless we agree otherwise. We always confirm the list in writing before shipping.

A Short Checklist Before Buying

• Transom height measured and matched to the 25 inch shaft.
• Boat capacity plate checked for horsepower and weight.
• Rotation decided for twin or triple setups.
• Rigging list ready: controls, steering, harness, gauges, prop.
• Delivery address and nearest port sent to us.

Send us that list and we will come back with a full price to your door.

Buying the Suzuki DF140ATXZW2 for sale From Us

Every motor we sell is new and the price is on this page. Before we ship, we give you a delivery quote for your country so you know the full cost. When you order we confirm stock, the exact model code and shaft length with you. Our refund and return policy and terms and conditions are on the site. You can read what other buyers say on our reviews page, learn more about us page, or go straight to the contact page.

Other Suzuki Motors to Compare

• All 140 HP Suzuki outboards
• Suzuki DF140ATL2, 20 inch shaft
• Suzuki DF140ATLW2, 20 inch shaft, white
• Suzuki DF140ATX2, 25 inch shaft
• Suzuki DF140ATXW2, 25 inch shaft, white
• Suzuki DF140ATXZ2, 25 inch shaft, counter rotation
• Suzuki DF140A
• Suzuki 115 HP outboards
• Suzuki 150 HP outboards
• All Suzuki outboards
• The full shop

Our blog has more on rigging and looking after outboards. Suzuki’s global site at globalsuzuki.com also shows the full worldwide marine line.

FAQ: Suzuki DF140ATXZW2 for sale

Is the Suzuki DF140ATXZW2 for sale new?

Yes. New, in the factory crate, with Suzuki paperwork.

What shaft length is the Suzuki DF140ATXZW2 for sale?

25 inch, the X shaft.

Is it standard or counter rotation?

Counter rotation (left hand).

How heavy is the Suzuki DF140ATXZW2 for sale?

About 419 lb (190 kg).

What displacement is it?

2,044 cc (124.7 cu in), inline 4, dohc, 16 valves.

What controls does it use?

Mechanical cables.

What is the full throttle range?

5,600 to 6,200 rpm. Choose a prop that lands you in that range with a normal load.

Do you ship the Suzuki DF140ATXZW2 for sale to my country?

We ship worldwide. Send us your location and we will quote delivery.

Final Word

If you want a proven 140 horsepower Suzuki that does the job without fuss, the Suzuki DF140ATXZW2 for sale is a safe choice. Order it today, or send us your boat details first and we will help make sure it is the right fit.
