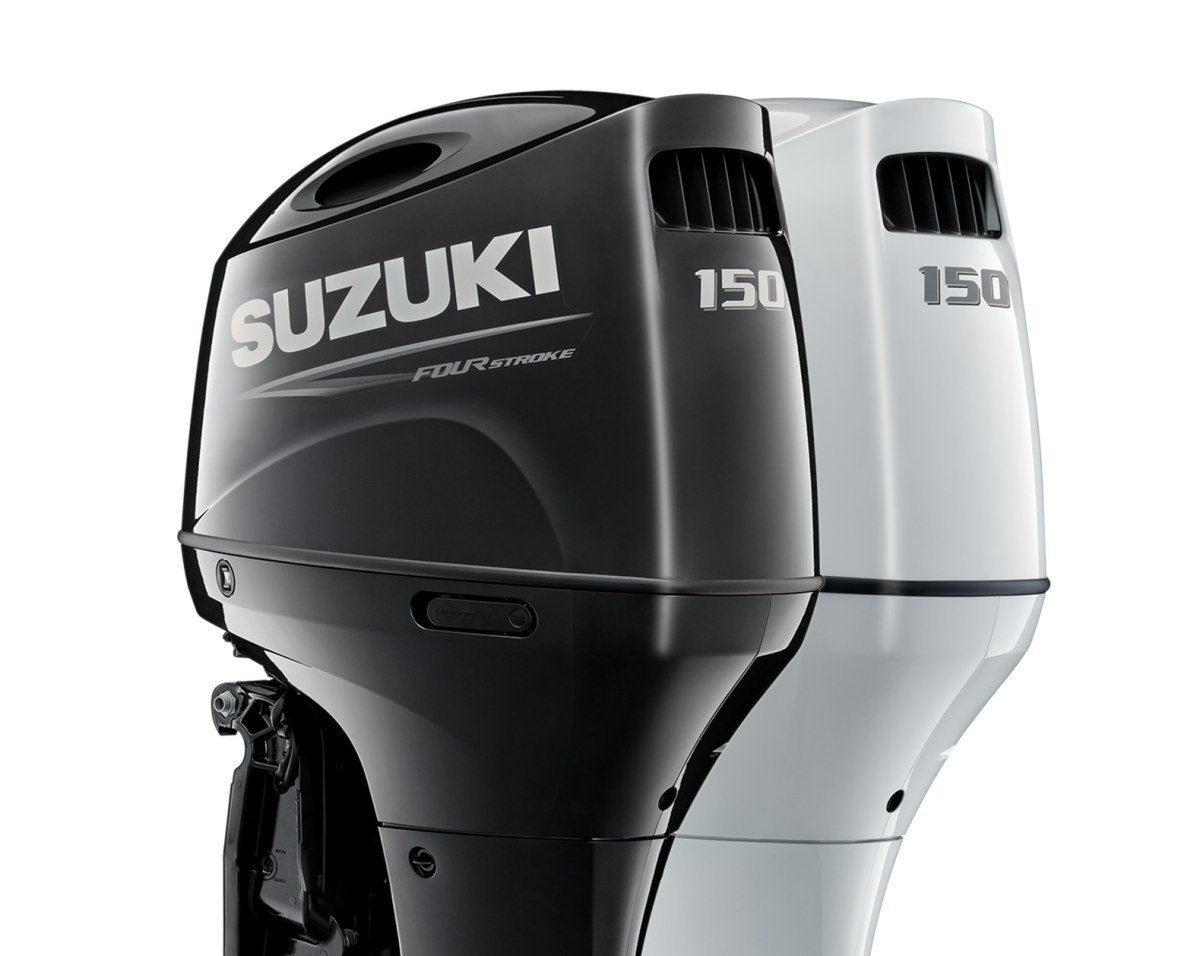

SUZUKI 150 HP DF150ATX2 OUTBOARD MOTOR

Description

We have the Suzuki DF150ATX2 for sale new in the factory crate. It is Suzuki’s 150 horsepower inline 4 four stroke with a 25 inch shaft, power trim and tilt, electric start and remote steering, finished in Pearl Nebular Black. It is a strong fit for centre consoles, bay boats and bigger pontoons that need real torque without V6 weight.

This is a new motor in the factory crate, sold by us and shipped to your country. Before you pay for freight you get a written delivery quote, so there are no surprises later. We are happy to answer questions about the Suzuki DF150ATX2 for sale by email or chat.

We put everything on this one page: specifications, the model code, boats it suits, how it runs, rigging, care, shipping and an FAQ at the end. Read what you need and skip the rest.

Suzuki DF150ATX2 for sale: Specifications

Numbers can move a little between production runs, so the paperwork in the crate is the final word. Suzuki keeps the current figures on its DF150A page on Suzuki Marine if you want to compare models side by side.

What the Model Code on the Suzuki DF150ATX2 for sale Means

Suzuki model codes look confusing until someone explains them once. DF is Suzuki’s four stroke prefix and 150 is the horsepower. The A marks the A generation of this engine. T means power trim and tilt. X is an extra long shaft, for a 25 inch transom. The 2 at the end is the series number in Suzuki’s order code.

What you do not see in the code matters too: there is no Z, so it is standard rotation, and there is no W, so the cowl is black.

Why the Suzuki DF150ATX2 for sale Pulls So Well

Suzuki’s 150 is built on its 2.9 litre inline four, the same engine as the 200. Big displacement in a 150 means torque low down, so the boat gets moving without the motor having to rev hard.

Lean Burn control trims fuel at cruise, and the multi-point fuel injection feeds each cylinder on its own. A timing chain runs in oil, so there is no belt to change. The Suzuki DF150ATX2 for sale handles this well.

Mechanical controls keep rigging simple. The offset driveshaft and two stage gear reduction give a compact motor with a 2.50:1 final ratio.

Tilt Limit and Flush Ports

The adjustable tilt limit protects the cowl when tilting, and the flush port lets you rinse the cooling system with a hose without running the motor.

Boats That Suit the Suzuki DF150ATX2 for sale

Centre consoles from 18 to 21 feet

A very common size for a single 150.

Bay boats

Plenty of torque for a loaded bay boat.

Pontoons and tritoons

Pontoons rated for 150 get strong performance.

Repowers

A popular step up from older 115 to 150 motors.

How the Suzuki DF150ATX2 for sale Feels on the Water

The Suzuki DF150ATX2 for sale idles quietly and shifts cleanly through the cables.

It pulls hard out of the hole and cruises easily. Owners often say it feels like a bigger motor than its rating. This is where the Suzuki DF150ATX2 for sale earns its keep.

Single or Twin Installs

On a single engine boat, this standard rotation model is all you need. For a twin setup you would normally pair it with the Suzuki DF150ATXZ2 so the props turn in opposite directions and the boat runs straight.

If you are building a twin rig, tell us when you order and we will match the two motors so the serial numbers, gearcases and paperwork line up.

Colour and Finish

Black is the standard Suzuki finish and suits almost any boat. If you want a white cowl to match a white hull, ask us about the W version of this motor. The engine underneath is the same. Plenty of buyers send us their boat details before ordering the Suzuki DF150ATX2 for sale, and we like that.

Rigging the Suzuki DF150ATX2 for sale

This is a remote model. You will need a control box with throttle and shift cables, a steering system rated for 150 HP (hydraulic is normal at this size), a key switch and harness, gauges, a good marine battery and a fuel system with a water separating filter.

Mount the motor so the anti-ventilation plate sits roughly level with the bottom of the hull, then fine tune after a test run. If the prop blows out in turns, drop it a hole. If there is a lot of spray and drag, raise it. The 12 V, 44 amp alternator keeps electronics charged on a normal day.

Transom Height and Shaft Length

The 25 inch shaft suits most offshore boats and centre consoles. Measure from the top of the transom to the bottom of the hull at the centreline before you order. Around 25 inches means the X shaft is right. Boats on an outboard bracket or with a deep notch may need a different length, so measure carefully.

Suzuki DF150ATX2 for sale or the DF150AP?

The DF150AP adds drive by wire and Selective Rotation. It suits twin rigs and digital helms.

The Suzuki DF150ATX2 for sale is the simpler and lower cost choice for single engine boats with cable controls.

The People Who Order This Motor

We sell the Suzuki DF150ATX2 for sale to weekend boaters, full time fishermen, charter skippers and boat builders all over the world. What they have in common is that they want a new Suzuki with proper paperwork, delivered to their door at a clear price. That is what we do.

Day to Day Ownership

Good outboards fade into the background. You stop thinking about the engine and think about the fishing or the family instead. The Suzuki DF150ATX2 for sale starts on the first turn, idles cleanly with no choke and does not foul plugs after a slow morning. Keep up with flushing and servicing and it will keep doing that for years.

The First Ten Hours

New motors need a gentle start. For the first hour keep the Suzuki DF150ATX2 for sale below half throttle and keep changing speed. After that you can use more throttle in short bursts. Avoid long runs at wide open throttle until the break-in period in the manual is done.

Book the first service on time. Fresh engine oil, a new filter and fresh gear oil set the motor up for the long run. Keep that in mind when you set up the Suzuki DF150ATX2 for sale.

Keeping the Suzuki DF150ATX2 for sale Healthy

Nothing about this motor needs special tools for routine care. Stick to a simple routine:

• After every trip: flush, rinse and check the tell-tale stream.
• Every month in use: look at the anodes, the prop and the fuel filter bowl.
• Every 100 hours or yearly: engine oil, oil filter, gear oil and a grease of every fitting.
• Every two years or so: water pump impeller and thermostat check.
• At the major service: plugs, fuel filters and a check of the trim system.

The timing chain runs in oil and does not need replacing like a belt. That is one less big bill to plan for.

Is 150 Horsepower Right for Your Boat?

Start with the capacity plate on your boat. It gives the maximum horsepower and the maximum weight the transom is built for. Most owners do well with a motor at or near the maximum rating, because a motor that is not working flat out lasts longer and uses less fuel at cruise. If your boat is rated well below 150 HP, do not go over the plate. If you are unsure, send us the make, model and length and we will check it for you.

Fuel Use and Running Costs

A big block 150 with Lean Burn cruises economically. Your hull and prop decide the real numbers. That applies to the Suzuki DF150ATX2 for sale as much as any motor.

Parts are easy to find in most countries because Suzuki sells a lot of outboards. Filters, impellers, anodes and plugs are normal stock items. That keeps the long term cost of owning the Suzuki DF150ATX2 for sale sensible.

Keep the Fuel Clean

Most problems people blame on the engine start in the tank. Water, old fuel and dirt in the lines will make any motor run badly. Change the water separating filter every season, drain the bowl if you see water and use fresh fuel. In hot, humid places keep the tank as full as you can when the boat is parked, so there is less room for condensation.

Treat the fuel well and fuel injection rewards you with easy starts and smooth running.

Getting the Prop Right

A motor is only as good as its prop. With the Suzuki DF150ATX2 for sale you want to land in the 5,000 to 6,000 rpm band at wide open throttle with a normal load. Too many revs means the pitch is too low. Too few means it is too high. The usual pitch choice for this motor is a 17 to 19 inch pitch range.

Look at Suzuki genuine parts and accessories for propellers and service parts, or ask us. We are happy to suggest a pitch if you send the boat make, length and typical load. If you are unsure, send us a photo of the transom and we will check the Suzuki DF150ATX2 for sale is the right fit.

Low Speed and Trolling

Four strokes are much better at low speed than old two strokes. They idle cleanly, do not load up with oil and do not foul plugs after an hour of trolling. If you troll a lot, ask about Suzuki Troll Mode, which lets you set trolling speed in small steps with a switch. Drift socks and a trolling plate are also cheap ways to slow a boat down further.

Gauges and Electronics

You can run simple analogue gauges or Suzuki’s multi-function digital gauges, which show rpm, trim, fuel flow, hours and warnings on one screen. Many owners also network the motor into their chartplotter. Keep engine wiring separate from accessory wiring, fuse everything and use marine grade connectors.

Batteries and Wiring

Use a marine starting battery with good cranking amps, keep the terminals clean and tight and fit a battery switch. If you run lots of electronics, a second house battery with a charging relay keeps the starting battery fresh. Corrosion on terminals and loose earth wires cause more no-start calls than anything inside the engine. Many repeat customers come back for a second Suzuki DF150ATX2 for sale on another boat.

Salt Water Care

Flush after every salt trip. Rinse the outside, wipe salt off the cowl and spray a corrosion inhibitor under the cowl now and then. Suzuki’s anti-corrosion finish is tough, but salt finds any gap if you ignore it. If the boat lives in the water, tilt the motor up when you leave it.

Running in Tropical or Cold Water

Tropical boaters should check the impeller more often and keep an eye on the cooling stream, because warm water with sand or silt wears pumps faster. In cold regions the Suzuki DF150ATX2 for sale starts easily with its fuel injection, but always store it upright and drained before freezing weather.

Trailering and Launching

If the boat lives on a trailer, tilt the motor up for the road and fit a transom saver or motor support so the bumps are not taken by the tilt system. Check the skeg clears the road on steep driveways. At the ramp, lower the motor fully before you start it, and never run it out of the water. A quick look at the cooling stream once it is running costs nothing and saves a lot.

After a salt launch, rinse the trailer and the motor together and run the flush. It takes ten minutes and adds years. The Suzuki DF150ATX2 for sale is covered here too.

Storage Between Trips

After the last run of the day, flush the motor and let it drain in the down position, then tilt it up. If it will sit for weeks, disconnect the battery or put it on a maintainer. For long storage, stabilise the fuel, change the oil, grease the steering and tilt points and fit a cover.

Common Problems and Quick Checks

Will not crank. Check the kill switch lanyard is clipped on, the lever is in neutral and the battery terminals are clean and tight.

Cranks but will not start. Squeeze the primer bulb until it is firm, open the tank vent and drain any water from the separator bowl. That is a big part of why people choose the Suzuki DF150ATX2 for sale.

Weak tell-tale stream. Clear the outlet with a bit of wire. If it is still weak, have the impeller checked before running hard.

Will not reach full revs. Usually the wrong prop or the motor mounted too low. Check the prop first.

Warning buzzer. Slow down straight away, check the cooling stream and oil, and do not keep running with an alarm. Owners of the Suzuki DF150ATX2 for sale tell us the same thing again and again.

Safety Gear Worth Carrying

Clip the kill switch lanyard on every time you run. Carry a spare lanyard, a basic tool kit, a spare prop and prop nut, a spare fuel filter, a VHF radio and a way to call for help. None of it costs much, and any of it can save a day on the water.

Repowering an Older Boat

If you are swapping out an old motor, check the transom core around the bolt holes once it is off. Soft or wet wood has to be fixed before you hang a new engine on it. Look at the steering too. Weeping hydraulic rams and stiff cables should be replaced now, not after the first trip.

On the first run, watch the tell-tale, listen for anything odd and see how the boat sits. Adjust trim and mounting height until it runs level and the prop holds in turns. It is one of the reasons we keep the Suzuki DF150ATX2 for sale in stock.

Two Stroke to Four Stroke: What Changes

If your old motor was a two stroke, a few things will feel new. You will stop buying two stroke oil. The motor will idle cleanly without smoke. Fuel bills drop, often a lot, especially at cruise. You will also notice the extra weight on the transom, so set the trim and mounting height carefully on the first runs.

Service changes too. Instead of plugs and oil injection checks, you will be changing engine oil and filters like a car. It is simple, and most owners prefer it.

Avoid These Common Errors

Ordering the wrong shaft length, guessing the prop, reusing worn out controls and going over the boat’s power or weight rating. Those four mistakes cause most of the post purchase headaches we hear about. All of them are avoided with a tape measure, a look at the capacity plate and a short chat with us before you pay. You get all of that with the Suzuki DF150ATX2 for sale.

What a Typical First Season Looks Like

Most owners do the break-in over the first few weekends, then the first service. After that it is simply using the boat: run it, flush it, tilt it up. Around the middle of the season it is worth checking the anodes and the prop for dings. At the end of the season comes the lay up service with oil, gear oil and a grease. That is honestly all most people need to do in year one.

How Delivery Works

We ship worldwide. Once you confirm the order, the Suzuki DF150ATX2 for sale is strapped to a pallet in its original crate and booked with a freight company we trust, or with your own forwarder. You get the paperwork your customs office asks for and a tracking number so you can follow it.

About the Warranty

Suzuki warranty terms vary by country and by recreational or commercial use. We will tell you what applies where you are. Whatever the terms, keep the paperwork and a simple service log. It makes any claim much easier.

What Comes in the Crate

• DF150ATX2 powerhead, midsection and gearcase
• Owner’s manual and warranty paperwork
• Standard Suzuki fittings from the factory

Controls, gauges, harnesses, propeller and steering depend on what we have in stock and are not always included. Ask before you order and we will tell you exactly what ships with your motor.

A Short Checklist Before Buying

• Transom height measured and matched to the 25 inch shaft.
• Boat capacity plate checked for horsepower and weight.
• Rotation decided for twin or triple setups.
• Rigging list ready: controls, steering, harness, gauges, prop.
• Delivery address and nearest port sent to us.

Send us that list and we will come back with a full price to your door.

Ordering Is Simple

Add the Suzuki DF150ATX2 for sale to your cart or message us with your boat details. We confirm the model, shaft, colour and rotation, then send a delivery quote. Once you approve it, we ship. Read our refund and return policy and terms and conditions first, and look at the reviews page if you want to hear from other buyers. Questions about us are answered on the about us page, and the contact page reaches a real person.

Other Suzuki Motors to Compare

• All 150 HP Suzuki outboards
• Suzuki DF150ATL2, 20 inch shaft
• Suzuki DF150ATLW2, 20 inch shaft, white
• Suzuki DF150ATXW2, 25 inch shaft, white
• Suzuki DF150ATXZ2, 25 inch shaft, counter rotation
• Suzuki DF150ATXZW2, 25 inch shaft, counter rotation, white
• Suzuki 140 HP outboards
• Suzuki 175 HP outboards
• All Suzuki outboards
• The full shop

Our blog has more on rigging and looking after outboards. Suzuki’s global site at globalsuzuki.com also shows the full worldwide marine line.

FAQ: Suzuki DF150ATX2 for sale

Is the Suzuki DF150ATX2 for sale new?

Yes. New, in the factory crate, with Suzuki paperwork.

What shaft length is the Suzuki DF150ATX2 for sale?

25 inch, the X shaft.

Is it standard or counter rotation?

Standard (right hand).

How heavy is the Suzuki DF150ATX2 for sale?

About 522 lb (237 kg).

What displacement is it?

2,867 cc (174.9 cu in), inline 4, dohc, 16 valves.

What controls does it use?

Mechanical cables.

What is the full throttle range?

5,000 to 6,000 rpm. Choose a prop that lands you in that range with a normal load.

Do you ship the Suzuki DF150ATX2 for sale to my country?

We ship worldwide. Send us your location and we will quote delivery.

Ready When You Are

The Suzuki DF150ATX2 for sale is in stock and ready to ship. If you are still deciding, send us your boat and how you use it. We would rather spend a few minutes getting it right than sell you the wrong motor.
