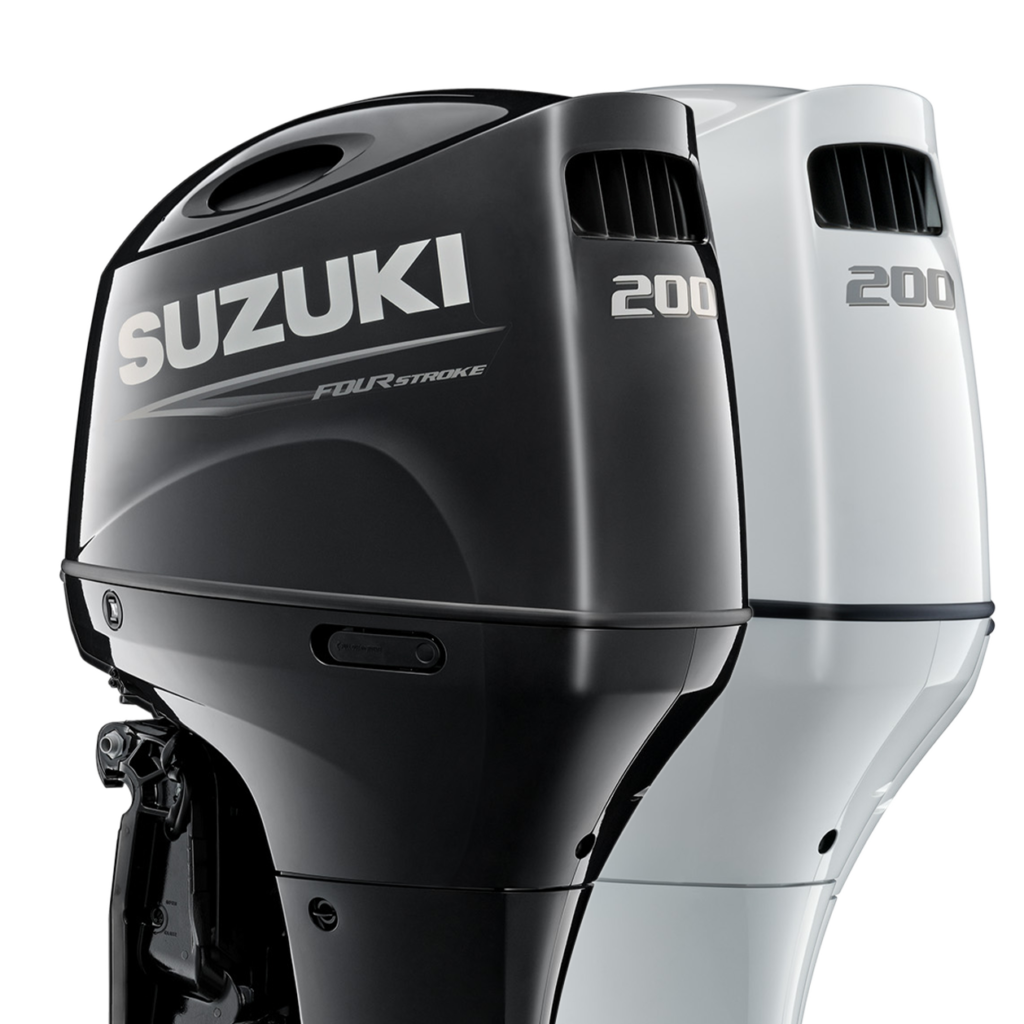

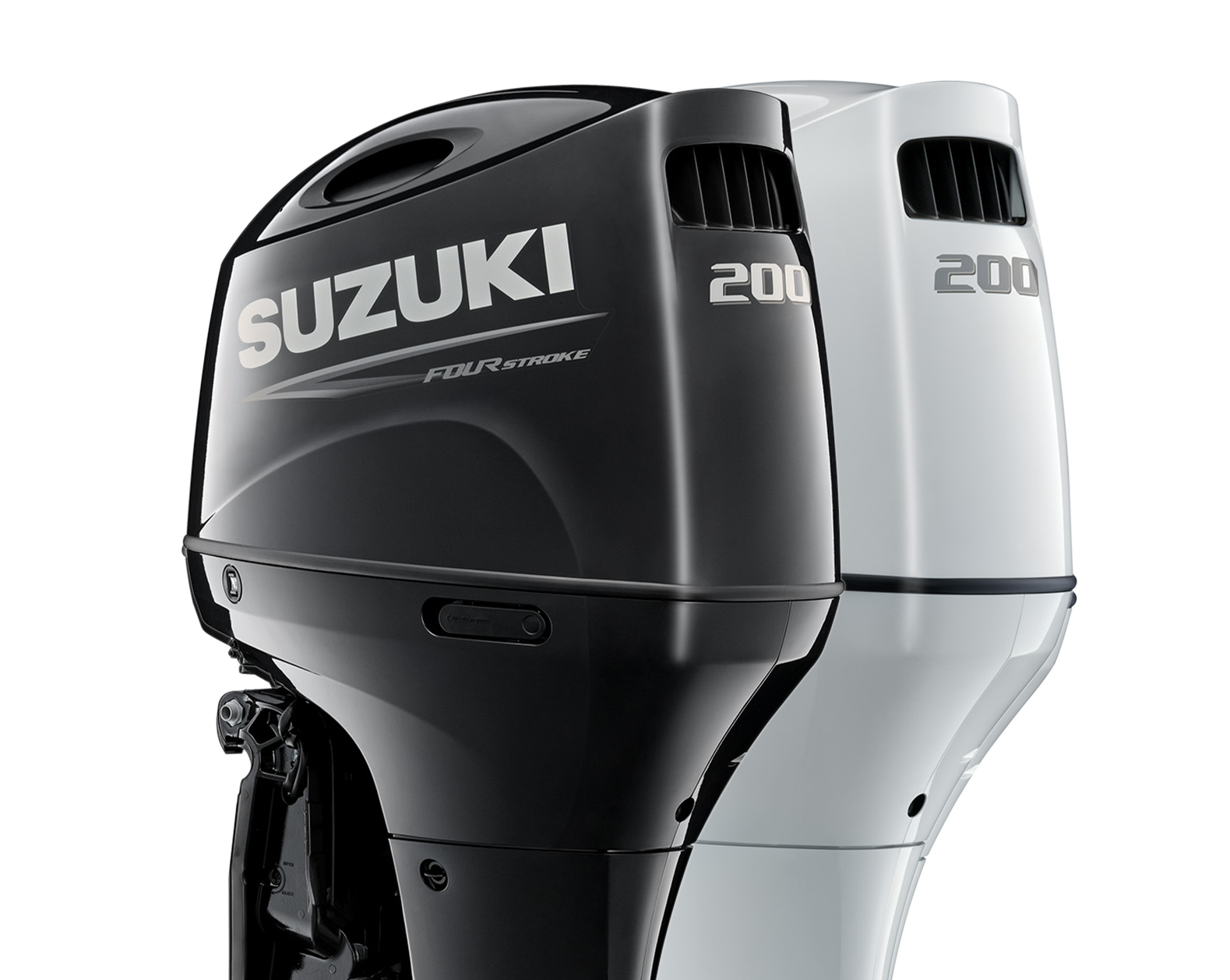

SUZUKI 200 HP DF200AP OUTBOARD MOTOR

Description

This page is for the Suzuki DF200AP outboard motor, sold new by us with worldwide delivery. You are looking at Suzuki’s 200 HP inline 4 four stroke: 20 or 25 inch shaft, power trim and tilt, electric start and remote steering, in Pearl Nebular Black or Cool White. It is a strong fit for centre consoles, bay boats and bigger pontoons that need real torque without V6 weight.

We sell new outboards to private owners, fishing operators, boat builders and dealers, and we ship worldwide. Tell us where your boat is and we send you a delivery quote before you commit to anything. If you are unsure, send us a photo of the transom and we will check the Suzuki DF200AP outboard motor is the right fit.

Below you will find the full specs, what the model code means, the boats it suits, rigging, maintenance and the questions buyers ask us most. It is a long page on purpose. A motor like this is a serious purchase and most people want the details first.

Suzuki DF200AP outboard motor: Specifications

Numbers can move a little between production runs, so the paperwork in the crate is the final word. Suzuki keeps the current figures on its DF200A series page on Suzuki Marine if you want to compare models side by side.

What the Model Code on the Suzuki DF200AP outboard motor Means

Suzuki model codes look confusing until someone explains them once. DF is Suzuki’s four stroke prefix and 200 is the horsepower. The A marks the A generation of this engine. The P stands for Suzuki Precision Control, the drive by wire system, and on this engine it comes with Selective Rotation. This listing uses the short model name, so we confirm the full order code, shaft length, colour and rotation with you before the Suzuki DF200AP outboard motor ships.

Why the Suzuki DF200AP outboard motor Is an Inline Four

Suzuki’s big 200 is not a V6. It is a 2.9 litre inline four, one of the largest four cylinder outboards ever built. Big bore, big stroke, lots of torque, and fewer moving parts than a V6. It is also lighter than most V6 200s.

The AP version adds Suzuki Precision Control drive by wire and Suzuki Selective Rotation. One motor can run standard or counter rotation, set at rigging time. That makes twin 200s very simple to put together. Many repeat customers come back for a second Suzuki DF200AP outboard motor on another boat.

Lean Burn control trims fuel at cruise, and the offset driveshaft moves the weight forward for a compact, smooth running motor. A user adjustable tilt limit stops the motor from tilting into a jack plate, swim platform or cowl cover.

Selective Rotation on the Suzuki DF200AP outboard motor

The direction of the prop is set electronically. Run standard rotation on a single engine boat, or set one motor each way on a twin rig with matching right and left hand props. One model covers both sides of the boat.

Boats That Suit the Suzuki DF200AP outboard motor

Centre consoles from 20 to 24 feet

A single 200 is a common pick at this size. Twins suit boats up to about 28 feet.

Bay boats

Plenty of torque for a loaded bay boat and good economy on the run back.

Pontoons and tritoons

Bigger tritoons do very well on 200 horsepower.

Twin engine rigs

Selective Rotation makes twin rigs easy because both motors are the same model.

How the Suzuki DF200AP outboard motor Feels on the Water

Drive by wire gives the Suzuki DF200AP outboard motor a smooth, quiet shift and an exact throttle. Low speed work around the dock is easy.

The long stroke four pulls hard from low revs. Boats come up on plane without fuss, and the cruise is relaxed and quiet. The Suzuki DF200AP outboard motor is covered here too.

Single or Twin Installs

On a single engine boat, set the Suzuki DF200AP outboard motor to standard rotation and fit a right hand prop. For twins, order two of the same model, set one to counter rotation at rigging time and fit a left hand prop on that side. There is no separate Z model to hunt for.

Tell us when you order a pair and we will match the two motors so serial numbers and paperwork line up.

Colour and Finish

Black is the standard Suzuki finish and suits almost any boat. If you want a white cowl to match a white hull, ask us about the W version of this motor. The engine underneath is the same. That is a big part of why people choose the Suzuki DF200AP outboard motor.

Rigging the Suzuki DF200AP outboard motor

This is a drive by wire motor, so there are no throttle or shift cables. You will need Suzuki digital remote controls, the engine and helm harnesses, a compatible gauge, a steering system rated for the horsepower (hydraulic is normal at this size), a good marine battery and a fuel system with a water separating filter.

Mount the motor so the anti-ventilation plate sits roughly level with the bottom of the hull, then fine tune after a test run. If the prop blows out in turns, drop it a hole. If there is a lot of spray and drag, raise it. The 12 V, 44 amp alternator keeps electronics charged on a normal day.

Transom Height and Shaft Length

This motor comes in more than one shaft length: L (20 inch) or X (25 inch). Measure from the top of the transom to the bottom of the hull at the centreline, send us the number and we will match the shaft. Getting this right is the single most important part of ordering an outboard. Owners of the Suzuki DF200AP outboard motor tell us the same thing again and again.

Suzuki DF200AP outboard motor or the DF200AT?

The DF200AT uses the same 2.9 litre engine with mechanical cable controls and fixed rotation. It is the simpler, lower cost choice for boats that already have cables.

The Suzuki DF200AP outboard motor adds drive by wire and Selective Rotation. Pick it for new builds with digital helms, for twin rigs, or if you want the smoothest controls Suzuki offers on this engine.

The People Who Order This Motor

We sell the Suzuki DF200AP outboard motor to weekend boaters, full time fishermen, charter skippers and boat builders all over the world. What they have in common is that they want a new Suzuki with proper paperwork, delivered to their door at a clear price. That is what we do.

Day to Day Ownership

Good outboards fade into the background. You stop thinking about the engine and think about the fishing or the family instead. The Suzuki DF200AP outboard motor starts on the first turn, idles cleanly with no choke and does not foul plugs after a slow morning. Keep up with flushing and servicing and it will keep doing that for years.

Breaking In the Suzuki DF200AP outboard motor

Follow the break-in in the owner’s manual. In short: vary the revs during the first hours, do not hold it at full throttle for long, and change the engine oil and filter at the first service. A motor broken in gently uses less oil and runs smoother for the rest of its life.

Give the gearcase its first oil change at that service too. It flushes out the fine metal from new gears bedding in.

Keeping the Suzuki DF200AP outboard motor Healthy

Nothing about this motor needs special tools for routine care. Stick to a simple routine:

• After every trip: flush, rinse and check the tell-tale stream.
• Every month in use: look at the anodes, the prop and the fuel filter bowl.
• Every 100 hours or yearly: engine oil, oil filter, gear oil and a grease of every fitting.
• Every two years or so: water pump impeller and thermostat check.
• At the major service: plugs, fuel filters and a check of the trim system.

The timing chain runs in oil and does not need replacing like a belt. That is one less big bill to plan for. It is one of the reasons we keep the Suzuki DF200AP outboard motor in stock.

Matching the Motor to the Boat

The right motor is the one your boat is rated for, carrying the load you normally carry. Check the capacity plate for maximum horsepower and engine weight, then think about how you use the boat. Heavy loads, rough water and long runs all favour running close to the maximum rating. Light boats and calm water give you more freedom. If the numbers do not line up with 200 HP, ask us and we will point you to a better match.

Fuel Use and Running Costs

Suzuki says the Lean Burn inline 200 is noticeably more frugal in the cruising range than its old V6 200. Your boat and prop decide the real numbers. You get all of that with the Suzuki DF200AP outboard motor.

Parts are easy to find in most countries because Suzuki sells a lot of outboards. Filters, impellers, anodes and plugs are normal stock items. That keeps the long term cost of owning the Suzuki DF200AP outboard motor sensible.

Keep the Fuel Clean

Most problems people blame on the engine start in the tank. Water, old fuel and dirt in the lines will make any motor run badly. Change the water separating filter every season, drain the bowl if you see water and use fresh fuel. In hot, humid places keep the tank as full as you can when the boat is parked, so there is less room for condensation.

Treat the fuel well and fuel injection rewards you with easy starts and smooth running. Ask us if you want photos of the Suzuki DF200AP outboard motor before it ships.

Getting the Prop Right

A motor is only as good as its prop. With the Suzuki DF200AP outboard motor you want to land in the 5,500 to 6,100 rpm band at wide open throttle with a normal load. Too many revs means the pitch is too low. Too few means it is too high. The usual pitch choice for this motor is a 17 to 29 inch pitch range.

Look at Suzuki genuine parts and accessories for propellers and service parts, or ask us. We are happy to suggest a pitch if you send the boat make, length and typical load.

Running Slow All Day

Anglers spend a lot of time at idle or just above it. A fuel injected four stroke handles that well. There is no smoke, no oil fouling and no hard restart after a long drift. Keep an eye on the battery if you run a lot of electronics at low revs, and give the motor a short run at higher revs on the way home to clear it out. We are happy to answer questions about the Suzuki DF200AP outboard motor by email or chat.

Instruments for the Suzuki DF200AP outboard motor

Suzuki’s digital gauges read engine data straight from the motor, including fuel flow and service reminders. If you prefer, plain analogue tach and trim gauges work too. Whatever you fit, run tidy wiring with proper fuses. Good wiring now saves a lot of headaches later.

Getting the Electrics Right

A strong battery and clean connections are half the battle. Choose a marine cranking battery that meets or beats the motor’s requirement, crimp and heat shrink every connection and keep the battery secured in a box. A battery switch and a second battery for the electronics make long days much less stressful.

Salt Water Care

Flush after every salt trip. Rinse the outside, wipe salt off the cowl and spray a corrosion inhibitor under the cowl now and then. Suzuki’s anti-corrosion finish is tough, but salt finds any gap if you ignore it. If the boat lives in the water, tilt the motor up when you leave it. The Suzuki DF200AP outboard motor handles this well.

Hot and Cold Climates

In hot climates, check the tell-tale stream often and keep the cooling passages clean. Warm, silty water is hard on impellers. In cold climates, fuel injection makes starting easy, but drain the motor and winterise it properly before a freeze.

Towing and Ramp Habits

Long road trips are harder on an outboard than most people think. Use a motor support bracket rather than resting the motor on the tilt ram, and check the bolts on the transom clamp or mounting after the first few trips. At the ramp, back in, lower the motor, start it in the water and watch for the tell-tale before you drive off the trailer. This is where the Suzuki DF200AP outboard motor earns its keep.

Back home, flush it while you wash the boat. Same routine every time and it becomes second nature.

Laying It Up

For short breaks, flush, drain and tilt up. For a long lay up, run stabilised fuel through the system, change the engine and gear oil, fog the engine if the manual calls for it, grease every fitting and keep the battery charged. A cover keeps sun and bird mess off the cowl. Plenty of buyers send us their boat details before ordering the Suzuki DF200AP outboard motor, and we like that.

Simple Fixes Before You Call a Mechanic

No crank: lanyard clipped on, lever in neutral, battery charged, terminals tight.

Hard starting: firm primer bulb, tank vent open, no water in the separator, fresh fuel. Keep that in mind when you set up the Suzuki DF200AP outboard motor.

Overheat alarm: stop, tilt up and look for a plastic bag or weed over the intake. Check the tell-tale stream when you restart.

Low top speed: check the prop for damage, check the mounting height and make sure the boat bottom is clean. That applies to the Suzuki DF200AP outboard motor as much as any motor.

Rough running: old fuel and dirty filters cause most of it. Start there.

Carry These on Board

A spare kill cord, a spare prop with nut and washer, a fuel filter, a couple of spanners, a radio and a torch. Add a tow line and an anchor that holds. It sounds basic, but most bad days on the water start with something small.

Tips for a Repower

A repower is the best chance you will get to fix the things you cannot reach with a motor on the back. Check the transom, replace old fuel hoses and the primer bulb, clean or replace the tank pickup and fit a new water separating filter. Fresh fuel lines and clean fuel make a new motor happy from the first day.

Measure the transom height before ordering so the shaft length is right. It is the one mistake that is hard to fix later.

Two Stroke to Four Stroke: What Changes

If your old motor was a two stroke, a few things will feel new. You will stop buying two stroke oil. The motor will idle cleanly without smoke. Fuel bills drop, often a lot, especially at cruise. You will also notice the extra weight on the transom, so set the trim and mounting height carefully on the first runs.

Service changes too. Instead of plugs and oil injection checks, you will be changing engine oil and filters like a car. It is simple, and most owners prefer it.

Mistakes We See Buyers Make

The most common one is the wrong shaft length. Measure the transom before ordering, not after the crate arrives. The second is under-propping, which lets the motor over rev and wastes fuel. The third is skipping the rigging list, then finding out the old controls or harness do not fit the new motor. And the last is ignoring the boat’s capacity plate. A motor heavier or more powerful than the hull is rated for is a real safety problem.

The First Year of Ownership

Year one is easy. Follow the break-in, get the first service done on time and keep a log of hours. Look at the prop and anodes now and then, and flush after every salt trip. Before winter or a long break, do a proper lay up. If you do those simple things, the motor will reward you with years of trouble free running.

Shipping and Delivery

The Suzuki DF200AP outboard motor ships in its factory crate on a pallet. We book freight to your nearest port or airport, or to your door where that is possible. You get a written delivery quote before paying for shipping, then tracking and copies of the export documents once the crate leaves. If you already use a freight forwarder, we can hand it to them.

Warranty Notes

The Suzuki DF200AP outboard motor comes with Suzuki factory warranty paperwork. Terms depend on your region and on how the motor is registered and used, so ask us about warranty in your country before you order. Keep receipts and service records and follow the service schedule.

What Comes in the Crate

• DF200AP powerhead, midsection and gearcase
• Owner’s manual and warranty paperwork
• Standard Suzuki fittings from the factory

Controls, gauges, harnesses, propeller and steering depend on what we have in stock and are not always included. Ask before you order and we will tell you exactly what ships with your motor.

A Short Checklist Before Buying

• Transom height measured and matched to the 20 or 25 inch shaft.
• Boat capacity plate checked for horsepower and weight.
• Rotation decided for twin or triple setups.
• Rigging list ready: controls, steering, harness, gauges, prop.
• Delivery address and nearest port sent to us.

Send us that list and we will come back with a full price to your door.

Buying the Suzuki DF200AP outboard motor From Us

Every motor we sell is new and the price is on this page. Before we ship, we give you a delivery quote for your country so you know the full cost. When you order we confirm stock, the exact model code and shaft length with you. Our refund and return policy and terms and conditions are on the site. You can read what other buyers say on our reviews page, learn more about us page, or go straight to the contact page.

Other Suzuki Motors to Compare

• All 200 HP Suzuki outboards
• Suzuki DF200APL2, 20 inch shaft, Selective Rotation
• Suzuki DF200APLW2, 20 inch shaft, white, Selective Rotation
• Suzuki DF200APX2, 25 inch shaft, Selective Rotation
• Suzuki DF200APXW2, 25 inch shaft, white, Selective Rotation
• Suzuki DF200AP for sale (main listing)
• Suzuki 175 HP outboards
• Suzuki 225 HP outboards
• All Suzuki outboards
• The full shop

Our blog has more on rigging and looking after outboards. Suzuki’s global site at globalsuzuki.com also shows the full worldwide marine line.

FAQ: Suzuki DF200AP outboard motor

Is the Suzuki DF200AP outboard motor new?

Yes. New, in the factory crate, with Suzuki paperwork.

What shaft length is the Suzuki DF200AP outboard motor?

L (20 inch) or X (25 inch). We confirm the one you need before shipping.

Is it standard or counter rotation?

Suzuki Selective Rotation (standard or counter).

How heavy is the Suzuki DF200AP outboard motor?

L: about 520 lb (236 kg), X: about 531 lb (241 kg).

What displacement is it?

2,867 cc (174.9 cu in), inline 4, dohc, 16 valves.

What controls does it use?

Drive by wire, Suzuki Precision Control.

What is the full throttle range?

5,500 to 6,100 rpm. Choose a prop that lands you in that range with a normal load.

Do you ship the Suzuki DF200AP outboard motor to my country?

We ship worldwide. Send us your location and we will quote delivery.

Ready When You Are

The Suzuki DF200AP outboard motor is in stock and ready to ship. If you are still deciding, send us your boat and how you use it. We would rather spend a few minutes getting it right than sell you the wrong motor.
