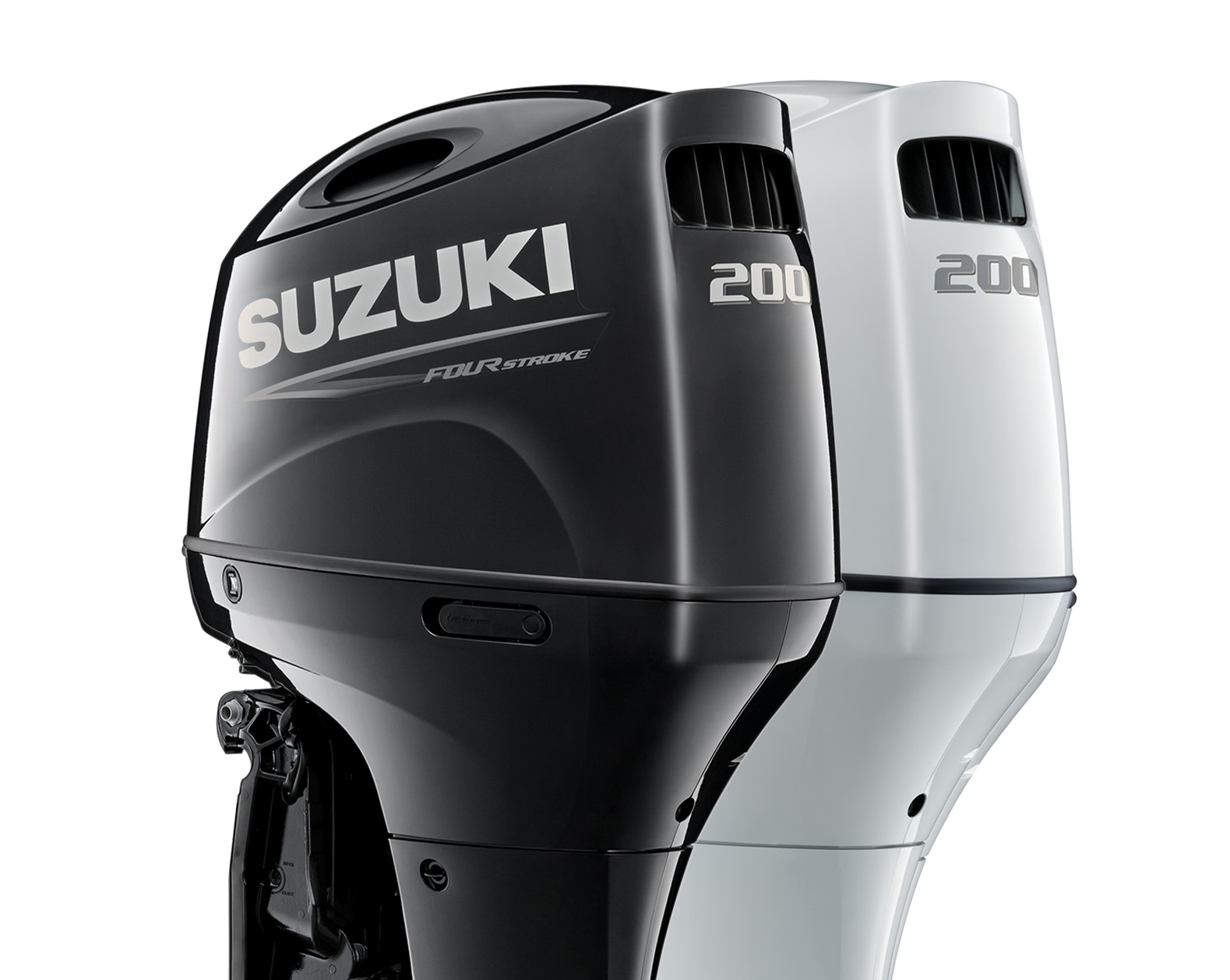

Suzuki 200 HP DF200ATXZ2 Outboard Motor

Description

We have the Suzuki DF200ATXZ2 for sale new in the factory crate. It is Suzuki’s 200 horsepower inline 4 four stroke with a 25 inch shaft, power trim and tilt, electric start and remote steering, finished in Pearl Nebular Black. It is a strong fit for centre consoles, bay boats and bigger pontoons that need real torque without V6 weight.

We sell new outboards to private owners, fishing operators, boat builders and dealers, and we ship worldwide. Tell us where your boat is and we send you a delivery quote before you commit to anything. Keep that in mind when you set up the Suzuki DF200ATXZ2 for sale.

We put everything on this one page: specifications, the model code, boats it suits, how it runs, rigging, care, shipping and an FAQ at the end. Read what you need and skip the rest.

Suzuki DF200ATXZ2 for sale: Specifications

Numbers can move a little between production runs, so the paperwork in the crate is the final word. Suzuki keeps the current figures on its DF200A page on Suzuki Marine if you want to compare models side by side.

What the Model Code on the Suzuki DF200ATXZ2 for sale Means

Suzuki model codes look confusing until someone explains them once. DF is Suzuki’s four stroke prefix and 200 is the horsepower. The A marks the A generation of this engine. T means power trim and tilt. X is an extra long shaft, for a 25 inch transom. Z means counter rotation, so the prop turns the opposite way to a standard motor. The 2 at the end is the series number in Suzuki’s order code.

What you do not see in the code matters too: there is no W, so the cowl is black. That applies to the Suzuki DF200ATXZ2 for sale as much as any motor.

The Engine Inside the Suzuki DF200ATXZ2 for sale

Suzuki’s 200 is a 2.9 litre inline four. That is a very big four cylinder, with a 97 mm bore and a 97 mm stroke. You get V6 style torque with fewer parts, less weight and a slimmer motor on the transom.

Lean Burn control watches the engine and trims the fuel mixture at cruise. Suzuki says this inline 200 burns noticeably less than its old V6 200 in the cruising range, and it carries a 3-star ultra low emission rating from CARB.

Mechanical cable controls keep it simple to rig. The offset driveshaft moves weight forward and cuts vibration, and the two stage gear reduction gives a 2.50:1 final ratio for a big prop. If you are unsure, send us a photo of the transom and we will check the Suzuki DF200ATXZ2 for sale is the right fit.

Tilt Limit System

The Suzuki DF200ATXZ2 for sale has a user adjustable tilt limit. Set it once and the motor will stop at a set angle when you tilt up. That protects the cowl from hitting a jack plate, a swim platform or a T-top post. It is a small feature that saves real damage.

Boats That Suit the Suzuki DF200ATXZ2 for sale

Centre consoles from 20 to 24 feet

A single 200 is the classic choice. Twins suit boats up to about 28 feet.

Bay boats and flats boats

Strong torque and a light weight for its power make it a good match.

Pontoons and tritoons

Tritoons rated for 200 run very well on this engine.

Repowers

A common replacement for older V6 two strokes and older four strokes, usually with less weight and less fuel.

How the Suzuki DF200ATXZ2 for sale Feels on the Water

The Suzuki DF200ATXZ2 for sale idles smoothly and shifts cleanly through the cables. It is quiet too. Suzuki tested it against a rival inline 200 and it came out quieter.

Open the throttle and the long stroke engine pulls from low down. It gets heavy boats on plane without drama and cruises in a relaxed way.

Single or Twin Installs

This is the counter rotating version. It is meant to go on the port side of a twin rig, paired with the Suzuki DF200ATX2 on the starboard side. With the props turning in opposite directions the boat tracks straight and steering stays light. Many repeat customers come back for a second Suzuki DF200ATXZ2 for sale on another boat.

If you are building a twin rig, order both motors together and we will match the shaft lengths, colours and paperwork.

Colour and Finish

Black is the standard Suzuki finish and suits almost any boat. If you want a white cowl to match a white hull, ask us about the W version of this motor. The engine underneath is the same. The Suzuki DF200ATXZ2 for sale is covered here too.

Rigging the Suzuki DF200ATXZ2 for sale

This is a remote model. You will need a control box with throttle and shift cables, a steering system rated for 200 HP (hydraulic is normal at this size), a key switch and harness, gauges, a good marine battery and a fuel system with a water separating filter.

Mount the motor so the anti-ventilation plate sits roughly level with the bottom of the hull, then fine tune after a test run. If the prop blows out in turns, drop it a hole. If there is a lot of spray and drag, raise it. The 12 V, 44 amp alternator keeps electronics charged on a normal day.

Transom Height and Shaft Length

The 25 inch shaft suits most offshore boats and centre consoles. Measure from the top of the transom to the bottom of the hull at the centreline before you order. Around 25 inches means the X shaft is right. Boats on an outboard bracket or with a deep notch may need a different length, so measure carefully. That is a big part of why people choose the Suzuki DF200ATXZ2 for sale.

Suzuki DF200ATXZ2 for sale or the DF200AP?

The DF200AP uses the same engine with drive by wire and Selective Rotation. It costs more and needs digital controls.

The Suzuki DF200ATXZ2 for sale keeps mechanical cables and fixed rotation. For a single engine boat, or a repower where cables are already in place, it is the straightforward choice.

Who Buys the Suzuki DF200ATXZ2 for sale From Us

Most of our buyers are owners who want a reliable motor and a fair price without dealer games. Next come fishing and charter operators repowering a working boat, and then boat builders and dealers who need stock to rig new hulls. The feedback after a season is nearly always the same: it starts every time, it is easy on fuel compared with what they had, and it has needed nothing beyond normal servicing.

Day to Day Ownership

Good outboards fade into the background. You stop thinking about the engine and think about the fishing or the family instead. The Suzuki DF200ATXZ2 for sale starts on the first turn, idles cleanly with no choke and does not foul plugs after a slow morning. Keep up with flushing and servicing and it will keep doing that for years.

The First Ten Hours

New motors need a gentle start. For the first hour keep the Suzuki DF200ATXZ2 for sale below half throttle and keep changing speed. After that you can use more throttle in short bursts. Avoid long runs at wide open throttle until the break-in period in the manual is done.

Book the first service on time. Fresh engine oil, a new filter and fresh gear oil set the motor up for the long run.

Keeping the Suzuki DF200ATXZ2 for sale Healthy

Nothing about this motor needs special tools for routine care. Stick to a simple routine:

• After every trip: flush, rinse and check the tell-tale stream.
• Every month in use: look at the anodes, the prop and the fuel filter bowl.
• Every 100 hours or yearly: engine oil, oil filter, gear oil and a grease of every fitting.
• Every two years or so: water pump impeller and thermostat check.
• At the major service: plugs, fuel filters and a check of the trim system.

The timing chain runs in oil and does not need replacing like a belt. That is one less big bill to plan for. Owners of the Suzuki DF200ATXZ2 for sale tell us the same thing again and again.

Matching the Motor to the Boat

The right motor is the one your boat is rated for, carrying the load you normally carry. Check the capacity plate for maximum horsepower and engine weight, then think about how you use the boat. Heavy loads, rough water and long runs all favour running close to the maximum rating. Light boats and calm water give you more freedom. If the numbers do not line up with 200 HP, ask us and we will point you to a better match.

What It Costs to Run

Lean Burn makes the Suzuki DF200ATXZ2 for sale one of the more efficient 200s around at cruise. We do not invent burn figures because your hull and prop change everything.

Servicing is not expensive either. Suzuki parts are widely stocked, and most routine jobs on the Suzuki DF200ATXZ2 for sale can be done by any decent marine mechanic or by a handy owner.

Keep the Fuel Clean

Most problems people blame on the engine start in the tank. Water, old fuel and dirt in the lines will make any motor run badly. Change the water separating filter every season, drain the bowl if you see water and use fresh fuel. In hot, humid places keep the tank as full as you can when the boat is parked, so there is less room for condensation. It is one of the reasons we keep the Suzuki DF200ATXZ2 for sale in stock.

Treat the fuel well and fuel injection rewards you with easy starts and smooth running.

Choosing a Propeller for the Suzuki DF200ATXZ2 for sale

The right prop lets the motor reach its full throttle range of 5,500 to 6,100 rpm with your normal load aboard. If it over revs, go up in pitch. If it cannot get into the range, come down. Suzuki lists a 17 to 29 inch pitch range for this motor.

Suzuki’s own props are a good match, and the Suzuki genuine parts and accessories range also covers filters, anodes and service kits. Or tell us your boat and load and we will suggest a starting prop. You get all of that with the Suzuki DF200ATXZ2 for sale.

Low Speed and Trolling

Four strokes are much better at low speed than old two strokes. They idle cleanly, do not load up with oil and do not foul plugs after an hour of trolling. If you troll a lot, ask about Suzuki Troll Mode, which lets you set trolling speed in small steps with a switch. Drift socks and a trolling plate are also cheap ways to slow a boat down further.

Instruments for the Suzuki DF200ATXZ2 for sale

Suzuki’s digital gauges read engine data straight from the motor, including fuel flow and service reminders. If you prefer, plain analogue tach and trim gauges work too. Whatever you fit, run tidy wiring with proper fuses. Good wiring now saves a lot of headaches later.

Batteries and Wiring

Use a marine starting battery with good cranking amps, keep the terminals clean and tight and fit a battery switch. If you run lots of electronics, a second house battery with a charging relay keeps the starting battery fresh. Corrosion on terminals and loose earth wires cause more no-start calls than anything inside the engine. Ask us if you want photos of the Suzuki DF200ATXZ2 for sale before it ships.

Looking After It in Salt Water

Fresh water flushing after every trip is the most important habit you can have. Use the flush port with a garden hose, rinse the outside and check the anodes regularly. On a mooring, keep the motor tilted up between trips so the gearcase is not sitting in the water.

Running in Tropical or Cold Water

Tropical boaters should check the impeller more often and keep an eye on the cooling stream, because warm water with sand or silt wears pumps faster. In cold regions the Suzuki DF200ATXZ2 for sale starts easily with its fuel injection, but always store it upright and drained before freezing weather.

Trailering and Launching

If the boat lives on a trailer, tilt the motor up for the road and fit a transom saver or motor support so the bumps are not taken by the tilt system. Check the skeg clears the road on steep driveways. At the ramp, lower the motor fully before you start it, and never run it out of the water. A quick look at the cooling stream once it is running costs nothing and saves a lot. We are happy to answer questions about the Suzuki DF200ATXZ2 for sale by email or chat.

After a salt launch, rinse the trailer and the motor together and run the flush. It takes ten minutes and adds years.

Storage Between Trips

After the last run of the day, flush the motor and let it drain in the down position, then tilt it up. If it will sit for weeks, disconnect the battery or put it on a maintainer. For long storage, stabilise the fuel, change the oil, grease the steering and tilt points and fit a cover. The Suzuki DF200ATXZ2 for sale handles this well.

Common Problems and Quick Checks

Will not crank. Check the kill switch lanyard is clipped on, the lever is in neutral and the battery terminals are clean and tight.

Cranks but will not start. Squeeze the primer bulb until it is firm, open the tank vent and drain any water from the separator bowl. This is where the Suzuki DF200ATXZ2 for sale earns its keep.

Weak tell-tale stream. Clear the outlet with a bit of wire. If it is still weak, have the impeller checked before running hard.

Will not reach full revs. Usually the wrong prop or the motor mounted too low. Check the prop first. Plenty of buyers send us their boat details before ordering the Suzuki DF200ATXZ2 for sale, and we like that.

Warning buzzer. Slow down straight away, check the cooling stream and oil, and do not keep running with an alarm.

Carry These on Board

A spare kill cord, a spare prop with nut and washer, a fuel filter, a couple of spanners, a radio and a torch. Add a tow line and an anchor that holds. It sounds basic, but most bad days on the water start with something small.

Repowering an Older Boat

If you are swapping out an old motor, check the transom core around the bolt holes once it is off. Soft or wet wood has to be fixed before you hang a new engine on it. Look at the steering too. Weeping hydraulic rams and stiff cables should be replaced now, not after the first trip.

On the first run, watch the tell-tale, listen for anything odd and see how the boat sits. Adjust trim and mounting height until it runs level and the prop holds in turns.

Coming From an Old Two Stroke

A lot of our buyers are replacing a two stroke that has done its time. The difference is bigger than most expect. No oil to mix or top up, no blue smoke at the dock, far less noise and a big drop in fuel use at cruise. The four stroke is heavier than an old two stroke of the same power, so check the capacity plate and how the boat sits once it is fitted. Most owners find the trade is well worth it after the first few trips.

Expect a different sound too. A four stroke is quieter and smoother, and some people keep looking back to check it is still running.

Avoid These Common Errors

Ordering the wrong shaft length, guessing the prop, reusing worn out controls and going over the boat’s power or weight rating. Those four mistakes cause most of the post purchase headaches we hear about. All of them are avoided with a tape measure, a look at the capacity plate and a short chat with us before you pay.

The First Year of Ownership

Year one is easy. Follow the break-in, get the first service done on time and keep a log of hours. Look at the prop and anodes now and then, and flush after every salt trip. Before winter or a long break, do a proper lay up. If you do those simple things, the motor will reward you with years of trouble free running.

How Delivery Works

We ship worldwide. Once you confirm the order, the Suzuki DF200ATXZ2 for sale is strapped to a pallet in its original crate and booked with a freight company we trust, or with your own forwarder. You get the paperwork your customs office asks for and a tracking number so you can follow it.

About the Warranty

Suzuki warranty terms vary by country and by recreational or commercial use. We will tell you what applies where you are. Whatever the terms, keep the paperwork and a simple service log. It makes any claim much easier.

What Comes in the Crate

• DF200ATXZ2 powerhead, midsection and gearcase
• Owner’s manual and warranty paperwork
• Standard Suzuki fittings from the factory

Controls, gauges, harnesses, propeller and steering depend on what we have in stock and are not always included. Ask before you order and we will tell you exactly what ships with your motor.

Before You Order the Suzuki DF200ATXZ2 for sale

• Measure your transom height to confirm the 25 inch shaft is right.
• Check your boat’s maximum rated horsepower and engine weight.
• Decide on rotation if you run more than one motor.
• Work out what controls, steering and gauges you need.
• Tell us your country so we can quote shipping.

If anything is unclear, ask. Ten minutes of questions now saves a lot of trouble once the crate lands.

Buying the Suzuki DF200ATXZ2 for sale From Us

Every motor we sell is new and the price is on this page. Before we ship, we give you a delivery quote for your country so you know the full cost. When you order we confirm stock, the exact model code and shaft length with you. Our refund and return policy and terms and conditions are on the site. You can read what other buyers say on our reviews page, learn more about us page, or go straight to the contact page.

Other Suzuki Motors to Compare

• All 200 HP Suzuki outboards
• Suzuki DF200ATL2, 20 inch shaft
• Suzuki DF200ATLW2, 20 inch shaft, white
• Suzuki DF200ATX2, 25 inch shaft
• Suzuki DF200ATXW2, 25 inch shaft, white
• Suzuki DF200ATXZ2 outboard motor (second listing)
• Suzuki DF200ATXZW2, 25 inch shaft, counter rotation, white
• Suzuki DF200A
• Suzuki 175 HP outboards
• Suzuki 225 HP outboards
• All Suzuki outboards
• The full shop

Our blog has more on rigging and looking after outboards. Suzuki’s global site at globalsuzuki.com also shows the full worldwide marine line.

FAQ: Suzuki DF200ATXZ2 for sale

Is the Suzuki DF200ATXZ2 for sale new?

Yes. New, in the factory crate, with Suzuki paperwork.

What shaft length is the Suzuki DF200ATXZ2 for sale?

25 inch, the X shaft.

Is it standard or counter rotation?

Counter rotation (left hand).

How heavy is the Suzuki DF200ATXZ2 for sale?

About 529 lb (240 kg).

What displacement is it?

2,867 cc (174.9 cu in), inline 4, dohc, 16 valves.

What controls does it use?

Mechanical cables.

What is the full throttle range?

5,500 to 6,100 rpm. Choose a prop that lands you in that range with a normal load.

Do you ship the Suzuki DF200ATXZ2 for sale to my country?

We ship worldwide. Send us your location and we will quote delivery.

Ready When You Are

The Suzuki DF200ATXZ2 for sale is in stock and ready to ship. If you are still deciding, send us your boat and how you use it. We would rather spend a few minutes getting it right than sell you the wrong motor.
