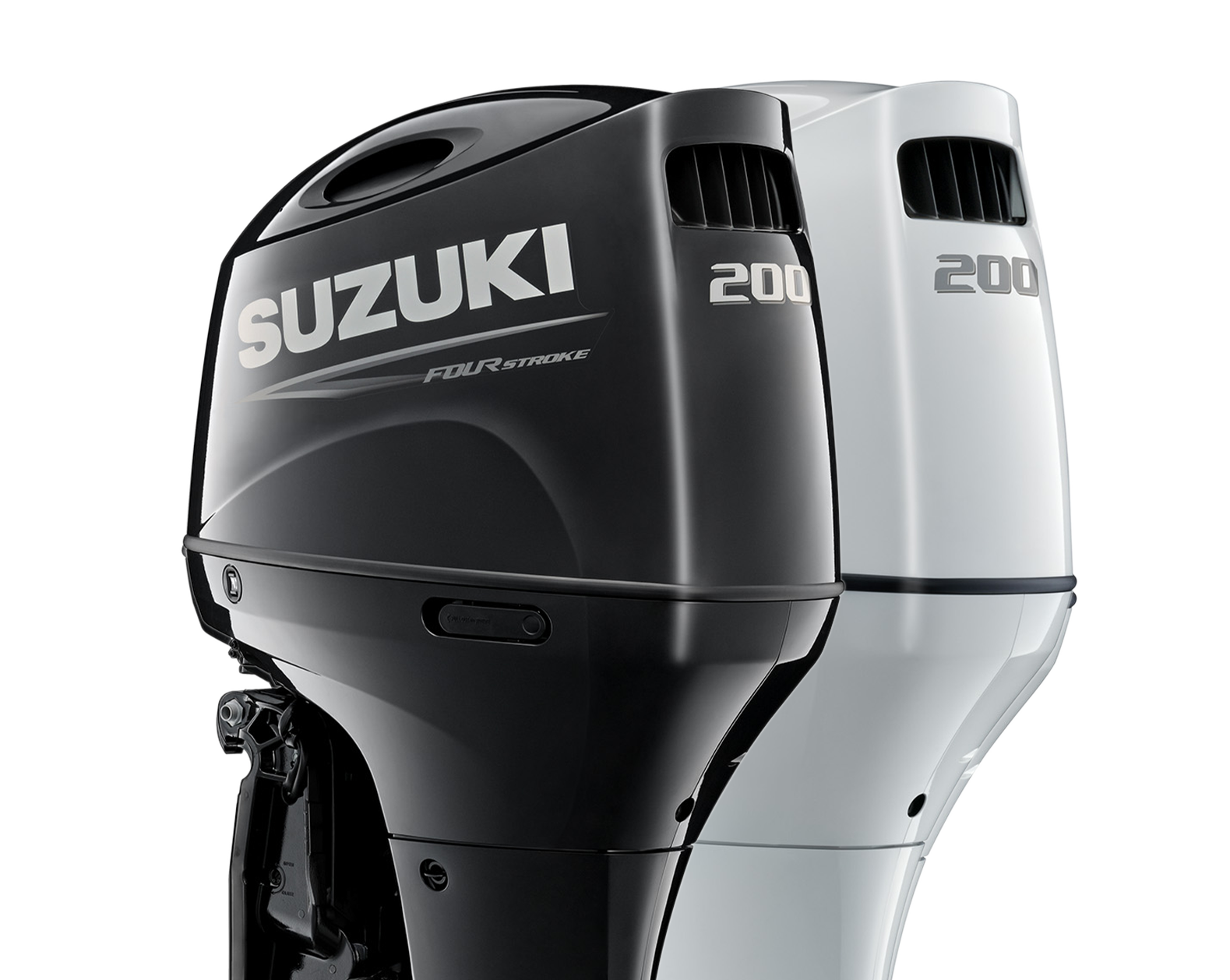

Suzuki 200 HP DF200ATXW2 Outboard Motor

Description

We have the Suzuki DF200ATXW2 for sale new in the factory crate. It is Suzuki’s 200 horsepower inline 4 four stroke with a 25 inch shaft, power trim and tilt, electric start and remote steering, finished in Cool White. It is a strong fit for centre consoles, bay boats and bigger pontoons that need real torque without V6 weight.

This is a new motor in the factory crate, sold by us and shipped to your country. Before you pay for freight you get a written delivery quote, so there are no surprises later. We are happy to answer questions about the Suzuki DF200ATXW2 for sale by email or chat.

Below you will find the full specs, what the model code means, the boats it suits, rigging, maintenance and the questions buyers ask us most. It is a long page on purpose. A motor like this is a serious purchase and most people want the details first.

Suzuki DF200ATXW2 for sale: Specifications

Numbers can move a little between production runs, so the paperwork in the crate is the final word. Suzuki keeps the current figures on its DF200A page on Suzuki Marine if you want to compare models side by side.

What the Model Code on the Suzuki DF200ATXW2 for sale Means

Suzuki model codes look confusing until someone explains them once. DF is Suzuki’s four stroke prefix and 200 is the horsepower. The A marks the A generation of this engine. T means power trim and tilt. X is an extra long shaft, for a 25 inch transom. W means the cowl is Cool White instead of black. The 2 at the end is the series number in Suzuki’s order code.

What you do not see in the code matters too: there is no Z, so it is standard rotation. The Suzuki DF200ATXW2 for sale handles this well.

The Engine Inside the Suzuki DF200ATXW2 for sale

Suzuki’s 200 is a 2.9 litre inline four. That is a very big four cylinder, with a 97 mm bore and a 97 mm stroke. You get V6 style torque with fewer parts, less weight and a slimmer motor on the transom.

Lean Burn control watches the engine and trims the fuel mixture at cruise. Suzuki says this inline 200 burns noticeably less than its old V6 200 in the cruising range, and it carries a 3-star ultra low emission rating from CARB.

Mechanical cable controls keep it simple to rig. The offset driveshaft moves weight forward and cuts vibration, and the two stage gear reduction gives a 2.50:1 final ratio for a big prop. This is where the Suzuki DF200ATXW2 for sale earns its keep.

Tilt Limit System

The Suzuki DF200ATXW2 for sale has a user adjustable tilt limit. Set it once and the motor will stop at a set angle when you tilt up. That protects the cowl from hitting a jack plate, a swim platform or a T-top post. It is a small feature that saves real damage.

Boats That Suit the Suzuki DF200ATXW2 for sale

Centre consoles from 20 to 24 feet

A single 200 is the classic choice. Twins suit boats up to about 28 feet.

Bay boats and flats boats

Strong torque and a light weight for its power make it a good match.

Pontoons and tritoons

Tritoons rated for 200 run very well on this engine.

Repowers

A common replacement for older V6 two strokes and older four strokes, usually with less weight and less fuel.

How the Suzuki DF200ATXW2 for sale Feels on the Water

The Suzuki DF200ATXW2 for sale idles smoothly and shifts cleanly through the cables. It is quiet too. Suzuki tested it against a rival inline 200 and it came out quieter.

Open the throttle and the long stroke engine pulls from low down. It gets heavy boats on plane without drama and cruises in a relaxed way.

Single or Twin Installs

On a single engine boat, this standard rotation model is all you need. For a twin setup you would normally pair it with the Suzuki DF200ATXZW2 so the props turn in opposite directions and the boat runs straight. Plenty of buyers send us their boat details before ordering the Suzuki DF200ATXW2 for sale, and we like that.

If you are building a twin rig, tell us when you order and we will match the two motors so the serial numbers, gearcases and paperwork line up.

Colour and Finish

This is the white version. Cool White looks clean on white hulls and stays cooler in the sun. Owners with white boats often say the motor just looks like it belongs. Under the paint it is identical to the black model. Keep that in mind when you set up the Suzuki DF200ATXW2 for sale.

Rigging the Suzuki DF200ATXW2 for sale

This is a remote model. You will need a control box with throttle and shift cables, a steering system rated for 200 HP (hydraulic is normal at this size), a key switch and harness, gauges, a good marine battery and a fuel system with a water separating filter.

Mount the motor so the anti-ventilation plate sits roughly level with the bottom of the hull, then fine tune after a test run. If the prop blows out in turns, drop it a hole. If there is a lot of spray and drag, raise it. The 12 V, 44 amp alternator keeps electronics charged on a normal day.

Transom Height and Shaft Length

The 25 inch shaft suits most offshore boats and centre consoles. Measure from the top of the transom to the bottom of the hull at the centreline before you order. Around 25 inches means the X shaft is right. Boats on an outboard bracket or with a deep notch may need a different length, so measure carefully. That applies to the Suzuki DF200ATXW2 for sale as much as any motor.

Suzuki DF200ATXW2 for sale or the DF200AP?

The DF200AP uses the same engine with drive by wire and Selective Rotation. It costs more and needs digital controls.

The Suzuki DF200ATXW2 for sale keeps mechanical cables and fixed rotation. For a single engine boat, or a repower where cables are already in place, it is the straightforward choice.

Who Buys the Suzuki DF200ATXW2 for sale From Us

Most of our buyers are owners who want a reliable motor and a fair price without dealer games. Next come fishing and charter operators repowering a working boat, and then boat builders and dealers who need stock to rig new hulls. The feedback after a season is nearly always the same: it starts every time, it is easy on fuel compared with what they had, and it has needed nothing beyond normal servicing.

Day to Day Ownership

Good outboards fade into the background. You stop thinking about the engine and think about the fishing or the family instead. The Suzuki DF200ATXW2 for sale starts on the first turn, idles cleanly with no choke and does not foul plugs after a slow morning. Keep up with flushing and servicing and it will keep doing that for years.

Breaking In the Suzuki DF200ATXW2 for sale

Follow the break-in in the owner’s manual. In short: vary the revs during the first hours, do not hold it at full throttle for long, and change the engine oil and filter at the first service. A motor broken in gently uses less oil and runs smoother for the rest of its life.

Give the gearcase its first oil change at that service too. It flushes out the fine metal from new gears bedding in.

Keeping the Suzuki DF200ATXW2 for sale Healthy

Nothing about this motor needs special tools for routine care. Stick to a simple routine:

• After every trip: flush, rinse and check the tell-tale stream.
• Every month in use: look at the anodes, the prop and the fuel filter bowl.
• Every 100 hours or yearly: engine oil, oil filter, gear oil and a grease of every fitting.
• Every two years or so: water pump impeller and thermostat check.
• At the major service: plugs, fuel filters and a check of the trim system.

The timing chain runs in oil and does not need replacing like a belt. That is one less big bill to plan for. If you are unsure, send us a photo of the transom and we will check the Suzuki DF200ATXW2 for sale is the right fit.

Is 200 Horsepower Right for Your Boat?

Start with the capacity plate on your boat. It gives the maximum horsepower and the maximum weight the transom is built for. Most owners do well with a motor at or near the maximum rating, because a motor that is not working flat out lasts longer and uses less fuel at cruise. If your boat is rated well below 200 HP, do not go over the plate. If you are unsure, send us the make, model and length and we will check it for you.

Fuel Use and Running Costs

Lean Burn makes the Suzuki DF200ATXW2 for sale one of the more efficient 200s around at cruise. We do not invent burn figures because your hull and prop change everything.

Parts are easy to find in most countries because Suzuki sells a lot of outboards. Filters, impellers, anodes and plugs are normal stock items. That keeps the long term cost of owning the Suzuki DF200ATXW2 for sale sensible.

Keep the Fuel Clean

Most problems people blame on the engine start in the tank. Water, old fuel and dirt in the lines will make any motor run badly. Change the water separating filter every season, drain the bowl if you see water and use fresh fuel. In hot, humid places keep the tank as full as you can when the boat is parked, so there is less room for condensation. Many repeat customers come back for a second Suzuki DF200ATXW2 for sale on another boat.

Treat the fuel well and fuel injection rewards you with easy starts and smooth running.

Getting the Prop Right

A motor is only as good as its prop. With the Suzuki DF200ATXW2 for sale you want to land in the 5,500 to 6,100 rpm band at wide open throttle with a normal load. Too many revs means the pitch is too low. Too few means it is too high. The usual pitch choice for this motor is a 17 to 29 inch pitch range.

Look at Suzuki genuine parts and accessories for propellers and service parts, or ask us. We are happy to suggest a pitch if you send the boat make, length and typical load. The Suzuki DF200ATXW2 for sale is covered here too.

Running Slow All Day

Anglers spend a lot of time at idle or just above it. A fuel injected four stroke handles that well. There is no smoke, no oil fouling and no hard restart after a long drift. Keep an eye on the battery if you run a lot of electronics at low revs, and give the motor a short run at higher revs on the way home to clear it out.

Gauges and Electronics

You can run simple analogue gauges or Suzuki’s multi-function digital gauges, which show rpm, trim, fuel flow, hours and warnings on one screen. Many owners also network the motor into their chartplotter. Keep engine wiring separate from accessory wiring, fuse everything and use marine grade connectors. That is a big part of why people choose the Suzuki DF200ATXW2 for sale.

Batteries and Wiring

Use a marine starting battery with good cranking amps, keep the terminals clean and tight and fit a battery switch. If you run lots of electronics, a second house battery with a charging relay keeps the starting battery fresh. Corrosion on terminals and loose earth wires cause more no-start calls than anything inside the engine.

Salt Water Care

Flush after every salt trip. Rinse the outside, wipe salt off the cowl and spray a corrosion inhibitor under the cowl now and then. Suzuki’s anti-corrosion finish is tough, but salt finds any gap if you ignore it. If the boat lives in the water, tilt the motor up when you leave it. Owners of the Suzuki DF200ATXW2 for sale tell us the same thing again and again.

Hot and Cold Climates

In hot climates, check the tell-tale stream often and keep the cooling passages clean. Warm, silty water is hard on impellers. In cold climates, fuel injection makes starting easy, but drain the motor and winterise it properly before a freeze.

Towing and Ramp Habits

Long road trips are harder on an outboard than most people think. Use a motor support bracket rather than resting the motor on the tilt ram, and check the bolts on the transom clamp or mounting after the first few trips. At the ramp, back in, lower the motor, start it in the water and watch for the tell-tale before you drive off the trailer. It is one of the reasons we keep the Suzuki DF200ATXW2 for sale in stock.

Back home, flush it while you wash the boat. Same routine every time and it becomes second nature.

Laying It Up

For short breaks, flush, drain and tilt up. For a long lay up, run stabilised fuel through the system, change the engine and gear oil, fog the engine if the manual calls for it, grease every fitting and keep the battery charged. A cover keeps sun and bird mess off the cowl. You get all of that with the Suzuki DF200ATXW2 for sale.

Simple Fixes Before You Call a Mechanic

No crank: lanyard clipped on, lever in neutral, battery charged, terminals tight.

Hard starting: firm primer bulb, tank vent open, no water in the separator, fresh fuel. Ask us if you want photos of the Suzuki DF200ATXW2 for sale before it ships.

Overheat alarm: stop, tilt up and look for a plastic bag or weed over the intake. Check the tell-tale stream when you restart.

Low top speed: check the prop for damage, check the mounting height and make sure the boat bottom is clean.

Rough running: old fuel and dirty filters cause most of it. Start there.

Safety Gear Worth Carrying

Clip the kill switch lanyard on every time you run. Carry a spare lanyard, a basic tool kit, a spare prop and prop nut, a spare fuel filter, a VHF radio and a way to call for help. None of it costs much, and any of it can save a day on the water.

Tips for a Repower

A repower is the best chance you will get to fix the things you cannot reach with a motor on the back. Check the transom, replace old fuel hoses and the primer bulb, clean or replace the tank pickup and fit a new water separating filter. Fresh fuel lines and clean fuel make a new motor happy from the first day.

Measure the transom height before ordering so the shaft length is right. It is the one mistake that is hard to fix later.

Two Stroke to Four Stroke: What Changes

If your old motor was a two stroke, a few things will feel new. You will stop buying two stroke oil. The motor will idle cleanly without smoke. Fuel bills drop, often a lot, especially at cruise. You will also notice the extra weight on the transom, so set the trim and mounting height carefully on the first runs.

Service changes too. Instead of plugs and oil injection checks, you will be changing engine oil and filters like a car. It is simple, and most owners prefer it.

Mistakes We See Buyers Make

The most common one is the wrong shaft length. Measure the transom before ordering, not after the crate arrives. The second is under-propping, which lets the motor over rev and wastes fuel. The third is skipping the rigging list, then finding out the old controls or harness do not fit the new motor. And the last is ignoring the boat’s capacity plate. A motor heavier or more powerful than the hull is rated for is a real safety problem.

What a Typical First Season Looks Like

Most owners do the break-in over the first few weekends, then the first service. After that it is simply using the boat: run it, flush it, tilt it up. Around the middle of the season it is worth checking the anodes and the prop for dings. At the end of the season comes the lay up service with oil, gear oil and a grease. That is honestly all most people need to do in year one.

Shipping and Delivery

The Suzuki DF200ATXW2 for sale ships in its factory crate on a pallet. We book freight to your nearest port or airport, or to your door where that is possible. You get a written delivery quote before paying for shipping, then tracking and copies of the export documents once the crate leaves. If you already use a freight forwarder, we can hand it to them.

Warranty Notes

The Suzuki DF200ATXW2 for sale comes with Suzuki factory warranty paperwork. Terms depend on your region and on how the motor is registered and used, so ask us about warranty in your country before you order. Keep receipts and service records and follow the service schedule.

What Comes in the Crate

• DF200ATXW2 powerhead, midsection and gearcase
• Owner’s manual and warranty paperwork
• Standard Suzuki fittings from the factory

Controls, gauges, harnesses, propeller and steering depend on what we have in stock and are not always included. Ask before you order and we will tell you exactly what ships with your motor.

A Short Checklist Before Buying

• Transom height measured and matched to the 25 inch shaft.
• Boat capacity plate checked for horsepower and weight.
• Rotation decided for twin or triple setups.
• Rigging list ready: controls, steering, harness, gauges, prop.
• Delivery address and nearest port sent to us.

Send us that list and we will come back with a full price to your door.

Ordering Is Simple

Add the Suzuki DF200ATXW2 for sale to your cart or message us with your boat details. We confirm the model, shaft, colour and rotation, then send a delivery quote. Once you approve it, we ship. Read our refund and return policy and terms and conditions first, and look at the reviews page if you want to hear from other buyers. Questions about us are answered on the about us page, and the contact page reaches a real person.

Other Suzuki Motors to Compare

• All 200 HP Suzuki outboards
• Suzuki DF200ATL2, 20 inch shaft
• Suzuki DF200ATLW2, 20 inch shaft, white
• Suzuki DF200ATX2, 25 inch shaft
• Suzuki DF200ATXW2 outboard motor (second listing)
• Suzuki DF200ATXZ2, 25 inch shaft, counter rotation
• Suzuki DF200ATXZW2, 25 inch shaft, counter rotation, white
• Suzuki DF200A
• Suzuki 175 HP outboards
• Suzuki 225 HP outboards
• All Suzuki outboards
• The full shop

Our blog has more on rigging and looking after outboards. Suzuki’s global site at globalsuzuki.com also shows the full worldwide marine line.

FAQ: Suzuki DF200ATXW2 for sale

Is the Suzuki DF200ATXW2 for sale new?

Yes. New, in the factory crate, with Suzuki paperwork.

What shaft length is the Suzuki DF200ATXW2 for sale?

25 inch, the X shaft.

Is it standard or counter rotation?

Standard (right hand).

How heavy is the Suzuki DF200ATXW2 for sale?

About 529 lb (240 kg).

What displacement is it?

2,867 cc (174.9 cu in), inline 4, dohc, 16 valves.

What controls does it use?

Mechanical cables.

What is the full throttle range?

5,500 to 6,100 rpm. Choose a prop that lands you in that range with a normal load.

Do you ship the Suzuki DF200ATXW2 for sale to my country?

We ship worldwide. Send us your location and we will quote delivery.

Ready When You Are

The Suzuki DF200ATXW2 for sale is in stock and ready to ship. If you are still deciding, send us your boat and how you use it. We would rather spend a few minutes getting it right than sell you the wrong motor.
