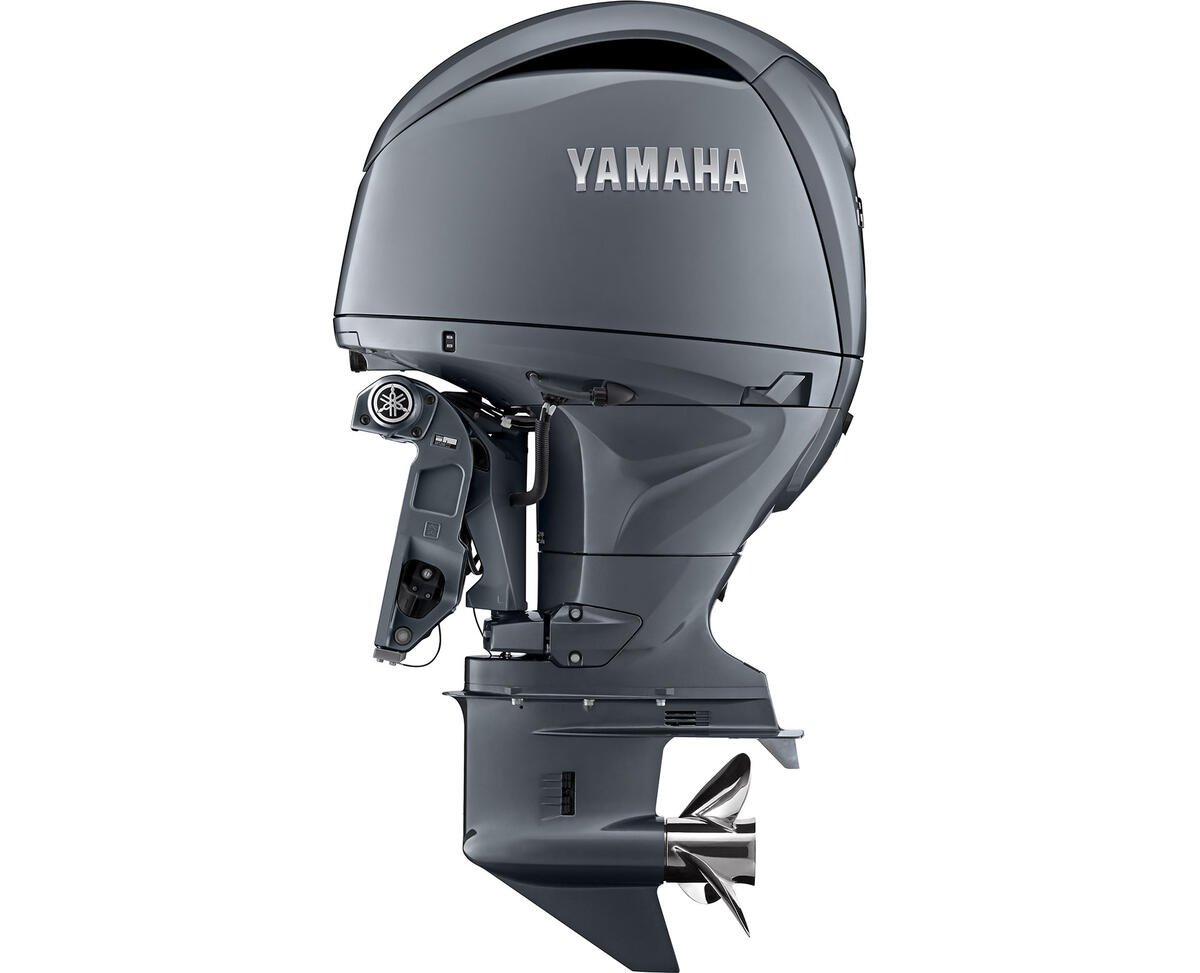

Yamaha 200 HP F200XB Outboard Motor

Description

If your boat has a 25 inch transom and is rated for 200 horsepower, this new Yamaha F200XB for sale deserves a spot at the top of your list. It is Yamaha’s 2.8 litre, 200 hp in-line four on an extra-long 25 inch shaft, with straightforward mechanical controls. It ships new in the crate and we deliver to customers around the world.

The F200XB is the motor many builders hang on 21 to 23 foot center consoles, offshore-capable bay boats and taller tritoons. It is lighter than V6 options with similar power, it is simple to rig with cables, and it has earned a strong reputation for running season after season without fuss.

This page covers it all: specifications, shaft length guidance, the boats it suits, performance, rigging, running costs, maintenance and ordering. If you want help working out whether it is right for your boat, ask us directly.

Yamaha F200XB for Sale: Overview

• New Yamaha F200XB four stroke outboard
• 200 hp from a 2.8 litre in-line four
• DOHC, 16 valves and Variable Camshaft Timing
• 25 inch extra-long shaft
• Mechanical throttle and shift
• Electronic fuel injection, electric start
• Power trim and tilt
• 50 amp alternator
• Standard rotation

For boats rated at 200 with a 25 inch transom, where the owner wants cable controls, the Yamaha F200XB for sale here ticks every box.

Yamaha F200XB Specifications

Here are the figures for the Yamaha F200XB for sale on this page.

Getting the Shaft Length Right

The shaft length decides where the propeller sits in the water. On a boat with a 25 inch transom, a 20 inch motor leaves the prop too high, so it ventilates and loses grip, especially in turns and rough water. A 25 inch motor on a 20 inch transom does the opposite, dragging extra gearcase through the water and slowing the boat.

To check, measure from the top of the transom straight down to the bottom of the hull, keeping the tape vertical. Around 25 inches means you want an X shaft like the Yamaha F200XB for sale. Around 20 inches means an L shaft, like the Yamaha F200LB. If your boat has a jack plate or bracket, measure to where the motor mounts.

Unsure? Send us a photo with a tape measure against the transom. It takes a minute and saves a lot of trouble.

Who Buys the Yamaha F200XB

The motor suits a wide range of boats. Our customers tend to fit it to:

• Center consoles from 21 to 23 feet
• Offshore-capable bay boats
• Walkaround and cuddy cabin boats
• Tall-bracket tritoons
• Workboats, dive boats and charter boats
• Coastal patrol and rescue boats

The lighter in-line four helps smaller offshore boats sit level, plane quickly and stay drier at rest. It also puts less load on the transom over time.

Performance

On a 22 foot center console with a reasonable load, an F200 usually reaches a top end in the low to mid 40s mph and cruises in the high 20s to mid 30s. Lighter boats go a bit faster, heavier ones a bit slower. Your exact numbers depend on hull shape, weight, prop and sea conditions.

Variable camshaft timing gives the F200 a strong hole shot and good mid-range. It pulls hard even with a full load of fuel, ice and people. At cruise the motor is quiet and smooth. Owners coming from older two strokes are always surprised by how calm it feels.

Trolling

Variable Trolling RPM lets you set idle from 650 to 900 rpm in 50 rpm steps using a compatible Yamaha gauge. Offshore trollers love it for pelagic species.

Propellers

Most boats in this class run 3 or 4 blade stainless props. Four blades often hold better in rough water and give a better hole shot. Three blades can give a little more top speed. Choose a pitch that lets the motor reach 5,000 to 6,000 rpm at full throttle with a normal load. Yamaha’s propeller range includes models for the in-line fours.

Mechanical Controls

The “B” version uses cables for throttle and shift. That keeps rigging straightforward and cheaper, and lets you reuse a compatible Yamaha mechanical control in good condition. If you would rather have the precise feel of electronic controls, the Yamaha F200XCA is the digital version on the same 25 inch shaft.

Rigging the Yamaha F200XB

The Yamaha F200XB for sale comes as the outboard. You will also need:

1. Yamaha mechanical control box
2. Throttle and shift cables
3. Main engine harness and key switch
4. Gauges, ideally Yamaha Command Link compatible
5. Hydraulic steering rated for 200 hp
6. Fuel line, primer bulb and a 10 micron water separating filter
7. Battery and cables
8. A suitable propeller

A good rigger will set engine height correctly and test run the boat to confirm prop choice.

Repowering an Offshore Boat

Many offshore boats built in the 1990s and 2000s came with 200 hp V6 two strokes on 25 inch shafts. Replacing one with the Yamaha F200XB for sale is a big upgrade: better economy, no oil mixing, less noise and smoke, and modern reliability. The 26 inch mounting centers line up with many older motors, so you may be able to reuse the existing holes.

Before you buy, check:

• Capacity plate limits for horsepower and weight
• Transom core condition
• Steering system strength and condition
• Fuel tank, hoses and vents
• Control box compatibility
• Battery and charging setup

Swapping a heavy V6 for the lighter in-line four usually helps the boat sit level and plane faster.

Fuel and Running Costs

The F200 runs on 89 octane unleaded. Use fresh fuel with no more than 10 percent ethanol, a good water separating filter and stabilizer if the boat sits. Even with mid-grade fuel, the in-line four is efficient, and its service needs are simple. Running costs are usually lower than V6 alternatives of similar power.

Maintenance

Every 100 hours or once a year:

• Engine oil and filter
• Gear oil
• Fuel filter and separator element
• Spark plugs as needed
• Anodes
• Grease fittings
• Water pump impeller every two or three years
• Timing belt check

Flush after every saltwater trip and rinse the outside. Check anodes more often in warm salt water.

Break-in

Follow the owner’s manual for the first 10 hours. Vary throttle, avoid long full-throttle runs and change oil after break-in.

The 200 HP Family

• Yamaha F200XB for sale (this one): 25 inch, mechanical
• Yamaha F200LB: 20 inch, mechanical
• Yamaha F200XCA: 25 inch, digital
• Yamaha F200LCA: 20 inch, digital
• Yamaha LF200XB: 25 inch, mechanical, counter-rotation
• Yamaha LF200XCA: 25 inch, digital, counter-rotation

For twin setups, pair this standard rotation motor with the LF200XB. Everything is in our 200 HP Yamaha section.

Ordering

Condition

The Yamaha F200XB for sale is new in the factory crate. Ask for photos if you want them before paying.

Shipping

We ship worldwide with FedEx, UPS and USPS, crated and tracked. Contact us for a delivered price.

Payment

Order through our shop or ask for an invoice.

Delivery

Inspect the crate before signing. Photograph any damage. Read our refund and return policy and terms.

Warranty

Warranty depends on where the motor is registered and used. Ask before you order the Yamaha F200XB for sale and we will confirm in writing.

Read customer reviews or learn more about us.

More From Yamaha

See Yamaha Motor Canada’s F200 page and the Yamaha Outboards website for factory features and dealer information.

Running Offshore With a Single F200

A lot of people who buy a Yamaha F200XB for sale plan to take their boat offshore. A single 200 on a 21 to 23 foot center console is a common and capable setup. But running one engine offshore calls for some good habits.

Plan your fuel. Use the rule of thirds: a third out, a third back, a third in reserve. A fuel flow gauge makes this easy. Rough water can double your fuel use per mile, so be conservative.

Filter your fuel well. Fit a quality 10 micron water separating filter and carry a spare element. Rough seas stir up anything sitting in the bottom of the tank.

Carry the basics. VHF radio, a way to call for help, flares, life jackets, anchor and enough line for the depth you fish. A basic tool kit, spare prop nut and cotter pin, and a spare fuel filter cover most simple problems.

Watch the weather. Check the forecast before you leave and keep an eye on the sky. With one engine, it is wise to head in early if conditions look like getting worse.

Consider a kicker. Some offshore anglers carry a small backup motor such as a Yamaha 9.9. It can get you home slowly if the main engine has a problem, and it is great for trolling. See our 9.9 HP Yamaha range.

Salt Water Care

Salt is the enemy of every outboard. A few habits keep it at bay:

• Flush with fresh water after every trip, even a short one
• Rinse the cowling, bracket, trim rams and steering
• Check anodes monthly in summer and replace when half gone
• Keep electrical plugs clean and greased
• Spray the powerhead with corrosion protectant every few weeks
• Wax the cowling twice a year to protect the paint

Do these things and your Yamaha F200XB for sale will stay looking good and running strong for years.

Setting Engine Height and Trim

Start with the anti-ventilation plate level with the keel. Test run, then raise the motor one hole at a time while watching speed, rpm and grip in turns. When the prop starts to slip in tight turns, drop back one hole.

For trim, start trimmed down to get on plane, then trim up gradually until speed stops rising. In a chop, keep the bow a little lower for a softer ride. In a following sea, trim up a touch to keep the bow from digging in.

A Season in the Life of an F200

Here is roughly what a year with a Yamaha F200XB for sale on the back of your boat looks like.

Spring. Reconnect or refit the battery. Check the oil. Prime the fuel. Start on muffs or in the water and let it warm while you watch the tell-tale and check for warnings. Fill with fresh fuel. Check the prop for damage from last season.

Early summer. The first few trips are a good chance to make sure everything is set up right. Check rpm at full throttle against the 5,000 to 6,000 range. Adjust trim habits as the boat gets loaded with summer gear.

Mid summer. The busy season. Flush after every salt trip. Check oil level every few outings. Watch anodes. Book the 100 hour service before you run out of hours, so you are not waiting during the best weather.

Autumn. Some of the best fishing of the year. Keep up the flushing and rinsing. Start thinking about storage.

Winter. Stabilize fuel, change oil and gear oil, grease everything, trim down, look after the battery and cover the motor.

That is all it takes. These motors do not need a lot of fuss, just regular, simple care.

Why Choose the In-Line Four Over a V6

Some boats rated for 200 could take a V6 instead. The V6 has more torque and displacement, but it is heavier, more expensive and uses more fuel. For most boats up to about 23 feet, the Yamaha F200XB for sale gives the better balance of performance, weight, economy and cost. The lighter motor helps the boat ride level and plane quickly, and the simpler four cylinder is cheaper to service.

If your boat is heavy, or you regularly run long offshore trips with big loads, a V6 might be worth considering. Tell us how you use your boat and we will give you an honest recommendation.

Before You Order

• Capacity plate allows 200 hp and the motor weight
• Transom is about 25 inches
• You want mechanical controls
• Rigging and prop are budgeted
• You have a delivered price in writing
• You know the warranty situation in your country

If all of that checks out, the Yamaha F200XB for sale is ready to go.

Electrical Setup and Gauges

The 50 amp alternator on the Yamaha F200XB for sale keeps up with a modern helm, but the rest of the electrical system needs to be set up properly to take advantage of it.

Use a marine cranking battery rated for a 200 hp outboard. If you run lots of electronics, add a house battery with a switch or automatic charging relay so the starting battery is always protected. Keep battery cables short and properly sized. Clean, tight, protected connections prevent voltage drops that cause slow starts and odd gauge behaviour. Run accessories through their own fused panel instead of the engine harness.

For gauges, Yamaha’s Command Link range works with the F200XB even with mechanical controls. You can see rpm, trim angle, engine hours, voltage and warnings. Add a fuel flow sensor and you get real-time fuel consumption, which is very useful offshore. Some modern chartplotters can also show engine data through a gateway, keeping the dash clean.

Choosing the Right Prop for Offshore

Offshore boats spend a lot of time in waves, so the prop has to hold its grip when the stern lifts and drops. Four blade props usually do this better than three blades, and they often help the boat stay on plane at lower speeds, which is useful in rough water. Three blade props can give a little more top end on calm days.

Whatever you choose, check that the motor reaches its 5,000 to 6,000 rpm range at full throttle with a typical load. If it does not reach 5,000, the pitch is too high. If it goes over 6,000, the pitch is too low. A one inch change in pitch usually moves rpm by about 150 to 200.

Many owners keep two props: one for everyday use and one for heavy loads or long trips. A spare prop on board is also smart offshore, along with the nut, washer and cotter pin to fit it.

Keeping Records

Keep a simple log for your Yamaha F200XB for sale: date, hours, what was serviced and any problems. Keep receipts for parts and services. This helps your mechanic diagnose issues, helps with any warranty questions and adds value when you sell the boat. Buyers of used boats pay more for motors with a clear service history.

Twin F200 Setups

Bigger offshore boats, usually 24 feet and up, sometimes run two 200s. For a twin setup you need one standard rotation motor and one counter-rotating motor with matching shaft lengths and control types. The Yamaha F200XB for sale here is the standard rotation, 25 inch, mechanical version. Its partner is the Yamaha LF200XB.

Twins offer redundancy offshore, better low speed handling and more total power. They also cost more to buy, rig and run. Make sure your boat’s capacity plate allows the total horsepower and weight before planning a twin rig.

If you are replacing one motor of an existing pair, send us the model code and serial number of the motor you are keeping. We will help you check that the new Yamaha F200XB for sale will work alongside it.

Common Mistakes to Avoid

These are the mistakes we see most often with new outboards. Avoid them and your Yamaha F200XB for sale will give you years of good service:

• Wrong shaft length. The single most expensive mistake. Measure twice.
• Skipping break-in. A few gentle hours at the start help the motor last.
• Bad fuel. Old gas and high ethanol blends cause most fuel problems.
• Wrong prop. Over-revving or lugging both hurt the engine.
• No flushing after salt. Salt left inside causes corrosion.
• Ignoring warnings. If the gauge shows an alarm or the tell-tale weakens, stop and check.
• Weak battery. A tired battery causes slow starts and electrical gremlins.

It is all simple stuff, but it makes a huge difference over the life of the motor. Look after the basics and the Yamaha F200XB for sale will look after you.

What Comes in the Crate

When your Yamaha F200XB for sale arrives, the crate holds the outboard itself along with the factory paperwork, which normally includes the owner’s manual and the parts needed to mount the motor to the transom. Rigging parts such as the control box, cables, gauges and the prop are separate, since they depend on your boat. Keep the paperwork safe and write down the serial number somewhere away from the boat. If the motor is ever stolen, or you need to order parts, that number makes life much easier.

Before the rigger starts, take a few photos of the motor out of the crate. They are handy for insurance records and make a nice record of your new engine on day one. Then hand the rigger the manual so they have the factory settings to hand while they work on your new Yamaha F200XB for sale.

Frequently Asked Questions

Is the Yamaha F200XB for sale new?

Yes, new in the factory crate.

XB or LB?

Same motor. XB has a 25 inch shaft, LB has 20 inches.

XB or XCA?

XB is mechanical. XCA is digital electronic control. Same 25 inch shaft.

What fuel?

89 octane unleaded, up to 10 percent ethanol.

Do you ship the Yamaha F200XB for sale worldwide?

Yes. Ask for a quote to your country.

Is a prop included?

No. We will help you pick one.

Order Now

If the Yamaha F200XB for sale fits your boat, add it to the cart or contact us for a shipping quote. Browse all our Yamaha outboards, see the 175 HP range, or read our blog.
