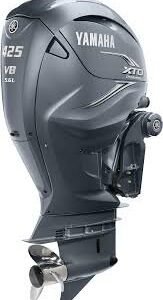

425hp Yamaha outboard motors sale-30” shaft engine LXF425USA7

Description

On this page is a new Yamaha LXF425USA7 for sale: a 425 horsepower XTO Offshore V8 with a 30 inch shaft, counter-rotation and the A7 production version. It ships new in its factory crate and we deliver worldwide. For big offshore boats running A7 XTOs on 30 inch transoms or brackets, this is the counter-rotating engine for the port positions.

The 30 inch U shaft is one of the most common lengths on large outboard boats. It suits the transoms and brackets on many 36 to 45 foot center consoles and sportfishing boats. The leading L in the code means the prop turns the opposite way to a standard engine, so it can balance standard XF425 engines on the other side of the transom.

I have put the specs, the model code explained in plain words, matching advice, rigging, running costs, maintenance and ordering details all on this page. If you have a question, send us a message.

Yamaha LXF425USA7 for Sale: Quick Facts

• New Yamaha LXF425USA7 XTO Offshore outboard
• 425 hp, 5.6 litre direct injection V8
• Counter-rotation
• 30 inch shaft (U)
• A7 production version
• Digital controls and integrated electric steering

If your boat runs A7 XTOs on a 30 inch setup and needs a counter-rotating engine, the Yamaha LXF425USA7 for sale is a direct match.

Specifications

The Model Code in Plain Words

The Yamaha LXF425USA7 for sale has a long name, but each part tells you something useful. L is counter-rotation. XF is Yamaha’s XTO Offshore four stroke series. 425 is the horsepower. U is the 30 inch shaft. SA7 is the model series and A7 production version. Without the L, the same engine would be standard rotation. With X instead of U, it would have a 25 inch shaft, and with E, a 35 inch shaft.

The production version is the detail people most often miss. On a boat with several XTOs, the engines share a control network and coordinated steering. When every engine is the same version, software, displays, joystick systems and service parts line up neatly. That is why we always ask about your existing engines before you buy.

Matching a Multi-Engine Set

Before you order the Yamaha LXF425USA7 for sale, check it against the rest of your set. The shaft should match your transom or bracket and the other engines, here 30 inches. The rotation should suit the position, with counter-rotating engines usually on the port side. The version should match, A7 with A7. And every prop should match in size and pitch, with left-hand props on counter-rotating engines.

If your engines are the original A version, the LXF425USA is the better counter-rotating match. You can find all shaft lengths, rotations and versions in our 425 HP Yamaha range.

Why Counter-Rotation Matters

A spinning prop pushes the stern slightly sideways as well as forward. With two, three or four 425 hp engines, those sideways forces add up quickly if every prop turns the same way. The boat pulls hard to one side and handling feels heavy. Mixing standard and counter-rotating engines cancels the forces, so the boat tracks straight, turns evenly in both directions and backs up predictably. On a big boat, that balance makes every day on the water easier.

Why the XTO Is Different

The XTO Offshore was designed from the start for heavy offshore boats. Direct injection improves combustion efficiency for better power and economy. The 5.6 litre V8 provides the torque heavy hulls need to plane and hold speed in rough water. The gearcase swings large props with a lot of blade area, giving strong thrust forward and in reverse. Steering is built into the engine, clearing hydraulic hoses and cylinders off the transom. And a strong charging system keeps up with the big electrical loads on modern offshore boats.

Why a 30 Inch Shaft

Many large center consoles and sportfishing boats use 30 inch transoms or brackets. The longer shaft puts the prop deep enough to grip in big seas while keeping the engine high enough to stay clear of following waves. Measure from the mounting surface straight down to the bottom of the hull. If you get close to 30 inches, the Yamaha LXF425USA7 for sale is the right length. Around 25 inches calls for an X shaft and around 35 inches for an E shaft.

Boats That Use It

• Center consoles from about 36 to 45 feet
• Sportfishing and tournament boats
• Express boats with outboard power
• Large catamarans with 30 inch brackets
• Patrol, rescue and government vessels

Performance and Props

XTO-powered boats are known for strong acceleration, fast cruising and the ability to carry heavy loads without strain. Exact performance depends on the hull, weight and number of engines. XTO engines use dedicated large-diameter props. The Yamaha LXF425USA7 for sale needs left-hand props, matched in size and pitch to the rest of the set. Your rigger will test props in sea trials so every engine reaches its rated rpm range at full throttle with a normal load. Yamaha’s propeller pages are a good starting point.

Rigging

An XTO install is a job for a rigger with XTO experience. A typical setup includes a Yamaha digital control binnacle for the number of engines, digital harnesses and network parts, start/stop panels, Yamaha or compatible displays, steering controls for the integrated electric steering, independent fuel feeds with water separating filters, battery banks sized for the engines and boat systems, and matched XTO props.

Transom and Bracket Strength

At close to 1,000 pounds each, XTOs put a heavy load on the stern. Make sure your transom or bracket is rated for the total weight and power of all engines. Inspect it carefully, especially on repowers, use the specified hardware and backing plates, seal every hole and re-check bolts after the first trips and at each service.

Fuel, Running Costs and Maintenance

Use the octane in the owner’s manual, usually 89, with fresh fuel and no more than 10 percent ethanol. Fit a good water separating filter on every engine. Direct injection helps economy, but big boats still burn plenty of fuel, so plan long trips carefully.

Follow the owner’s manual for service intervals. A normal service includes oil and filter, gear oil, fuel filters and separator elements, plugs as needed, anodes, grease points and water pump impellers. Service every engine together so they stay in step, and flush all engines with fresh water after salt use.

Ordering

Condition

New in the factory crate. Photos on request.

Shipping

Worldwide with FedEx, UPS and USPS, crated and tracked. XTO crates are large, so tell us about your delivery site and unloading options. Ask for a delivered price.

Payment

Order through our shop or ask for an invoice.

Delivery

Inspect the crate before signing. See our refund and return policy and terms.

Warranty

Depends on the country of registration and use. Ask before ordering the Yamaha LXF425USA7 for sale and we will confirm in writing.

Read our reviews or learn more about us.

Handling a Big XTO Boat

With digital controls and integrated steering, multiple XTOs make large boats manageable at low speed. Shift port and starboard engines in opposite directions to pivot. Use opposite shifts and a little helm to walk the stern toward a dock. Hold position against wind or current with short bursts on each engine. Many XTO boats also use Yamaha’s joystick docking, which coordinates the engines and steering so the boat moves in the direction you push the stick. At cruise, synchronisation keeps the engines matched. Practise in open water first.

Thrust, Not Just Horsepower

On heavy boats, thrust is what you feel. Horsepower describes how much work the engine can do. Thrust is how hard the prop pushes the boat. The Yamaha LXF425USA7 for sale and its partners swing larger props with more blade area than most outboards. That bigger blade area grips more water, getting heavy hulls onto plane faster and holding speed when the sea fights back. Strong reverse thrust helps the boat stop, back into a slip and hold position over a reef or wreck.

A Day on Twin XTOs

Picture a 40 foot center console with a Yamaha LXF425USA7 for sale on the port side and a standard rotation partner on starboard. You leave before dawn, sliding off the dock with the joystick. Clear of the inlet, both V8s come up together and the boat lifts onto plane with full tanks, ice and five anglers. The 30 inch shafts keep the props biting through a lumpy sea, and counter-rotation keeps the boat tracking straight.

At the grounds you troll for hours while the engines idle quietly. In the afternoon you head home into a building breeze, trimmed down, the torque of the XTOs holding a steady speed. Back at the marina, the joystick slides the boat into its berth. Engines flushed, hours logged, ready for next time.

More From Yamaha

See Yamaha Motor Canada’s XTO Offshore page and the Yamaha Outboards website.

Electrical and Fuel Planning

Big XTO boats carry heavy electrical loads such as large displays, radar, autopilot, stabilisers, air conditioning, fridges, lighting and pumps. Give the engines dedicated cranking batteries, put accessories on a separate house bank and use switches or relays to protect the cranking batteries. Size cables properly, keep connections clean and tight, use dielectric grease on digital plugs and keep accessories off the engine harnesses.

Every engine needs its own fuel feed and water separating filter, so one clogged filter only affects one engine. Make sure fuel lines and tank vents can supply several big V8s at cruise, and carry spare filters on long trips.

How Many Engines?

XTO boats usually run twins, triples or quads, chosen by the builder. Twins suit many 36 to 40 foot boats, triples suit boats around 40 to 45 feet and quads appear on the largest. More engines give more power, redundancy and control, but cost more to buy and run. Follow your builder’s specification and never exceed the boat’s rated horsepower and weight. On most layouts, counter-rotating engines such as the Yamaha LXF425USA7 for sale go on the port side.

Engine Height, Trim and Data

Start at the builder’s recommended height and fine-tune during sea trials, making sure the props grip in hard turns and rough water. At cruise, trim up until speed stops rising, keeping the bow lower in head seas. Yamaha’s displays show rpm, trim, fuel flow, hours, voltage, temperature and alarms for every engine. A clear engine page on your main display helps you catch problems early and plan fuel accurately.

Before You Order

Is your transom or bracket about 30 inches? Does this position need counter-rotation? Are your other engines A7 versions? Is the boat rated for the total horsepower and weight? What is the delivered price, and which warranty applies in your country? If any of those are unclear, send us photos before ordering the Yamaha LXF425USA7 for sale and we will help you confirm the right engine.

Repowering and Fleet Use

Repowering an older big boat with XTOs can make it feel brand new, but it is a serious project. Check transom or bracket strength, ratings, fuel and electrical capacity and helm space. If the boat was not designed for XTO weight, talk to the builder or a naval architect first, then plan the job with an experienced XTO rigger before ordering the Yamaha LXF425USA7 for sale and its partners.

Patrol, rescue, government and charter operators often choose XTOs for their power and dependability. Standardising a fleet on one version, such as A7, keeps parts and training simple. Plan services on hours, keep common parts in stock, log every engine in detail and schedule maintenance in quieter periods.

Looking After Your Engines

Flush every engine with fresh water after salt use. Rinse cowlings, brackets and trim rams. Check anodes often, spray powerheads with corrosion protectant every few weeks and wax the cowlings twice a year. Keep batteries healthy and connections clean, and log hours and services. If the boat lives in the water, run the engines regularly and protect the lower units from growth as your dealer advises. Looked after like this, a set built around the Yamaha LXF425USA7 for sale will give years of strong running.

Getting Home on Fewer Engines

If one engine has a problem offshore, tilt it up to cut drag and run home on the others at a sensible speed. Practise on a calm day, and plan fuel with extra margin because running slower can raise consumption per mile.

Why Buy From Us

We help you confirm shaft length, rotation and version before you pay. You get a written delivered price, a clear answer on warranty for your country and photos of the crate and label on request. We stay in touch after delivery too.

Integrated Electric Steering

Older big outboard boats used hydraulic steering: a helm pump pushed fluid through hoses to cylinders on each engine, with a tie bar linking them. It worked, but the transom became crowded and the system needed regular attention. XTO engines, including the Yamaha LXF425USA7 for sale, build the steering actuator into the engine and take electronic commands from the helm. The transom is cleaner, there is less to maintain, and the steering feels light and precise even on big boats. On multi-engine setups the system coordinates the engines, which helps at low speed and works with joystick docking. It is also one more reason to keep every engine on the same production version, so the steering behaves the same across the whole set.

Is the Yamaha LXF425USA7 for Sale Right for You?

The Yamaha LXF425USA7 for sale is the right engine if your boat is designed for XTO power, uses a 30 inch transom or bracket, needs a counter-rotating engine in this position and already runs A7 versions. It also suits a brand new set where you want A7 throughout.

If your transom is 25 or 35 inches, if the position needs standard rotation, or if your other engines are A or A2 versions, a different model from our range will be a better fit. Send us photos of your transom and engine labels and we will tell you whether to order the Yamaha LXF425USA7 for sale or which model to choose instead. We would rather take a few minutes to get it right than have a 1,000 pound engine arrive that does not match.

A Week of Patrol Work

Government and rescue fleets often run XTO engines, and this is a typical week for a 40 foot patrol boat with a Yamaha LXF425USA7 for sale on the port side. Each shift starts with a quick engine check and a fresh water flush from the previous day. The crew launches, the engines come up together and the boat runs fast to its patrol area. Much of the day is spent idling or running at moderate speed, and the digital controls make precise positioning easy when the crew needs to come alongside another vessel. When a call comes in, the crew pushes the throttles forward and the twin V8s deliver immediate thrust, getting the heavy boat up to speed quickly. At the end of each week, the engines are checked, hours logged and any service booked. That steady, demanding work is exactly what the XTO was built to handle.

Running Efficiently

Fuel is the biggest running cost on any big boat, and good habits make a real difference. Use fuel flow data to find the speed where your boat runs most efficiently. Trim up until speed stops rising. Keep the hull clean and props undamaged and matched. Keep the engines synchronised at cruise, and carry only what you need. Over a season, these habits save a lot of fuel and stretch your range, which adds a safety margin when you are far offshore with a set built around the Yamaha LXF425USA7 for sale.

Common Mistakes

• Ordering the wrong shaft length
• Wrong rotation for the position
• Mixing production versions without checking
• Undersized fuel lines or battery systems
• Using props not designed for XTO engines
• Skipping fresh water flushing after salt

Living With XTO Power

People sometimes expect the biggest outboards to be complicated to own. In reality, owners usually find them easy to live with. The engines start readily, idle quietly and handle long days offshore without fuss. Routine care is straightforward: flush after use, keep an eye on oil, keep anodes fresh and service on schedule. The integrated steering removes much of the hydraulic plumbing that once needed attention, and the digital displays warn you early if something needs a look. Most problems on big outboard boats come from bad fuel, weak batteries or corroded connections rather than the engines themselves. Take care of those basics, and the Yamaha LXF425USA7 for sale will reward you with many seasons of strong, dependable power.

Frequently Asked Questions

How heavy is it?

Around 965 pounds. Check your transom or bracket rating for the total weight of all engines.

What fuel does it use?

Unleaded at the octane in the owner’s manual, usually 89, with no more than 10 percent ethanol.

Does it need a left-hand prop?

Yes, a left-hand XTO prop matched to the rest of the set.

Is the Yamaha LXF425USA7 for sale new?

Yes, new in the factory crate.

Is it counter-rotation?

Yes. The leading L means counter-rotation.

What shaft length?

30 inches.

Do you ship the Yamaha LXF425USA7 for sale worldwide?

Yes. Ask us for a quote.

Order Yours

If the Yamaha LXF425USA7 for sale is right for your boat, add it to your cart or contact us for a delivered price. Browse all our Yamaha outboards, see the 350 HP range, or read our blog.

Still deciding? Message us with your boat details and we will tell you honestly whether the Yamaha LXF425USA7 for sale is the right motor, what rigging you will need and what it will cost delivered to your door. We answer every message personally, and there is never any pressure to buy. If it is not the right fit, we will point you to the model that is.
